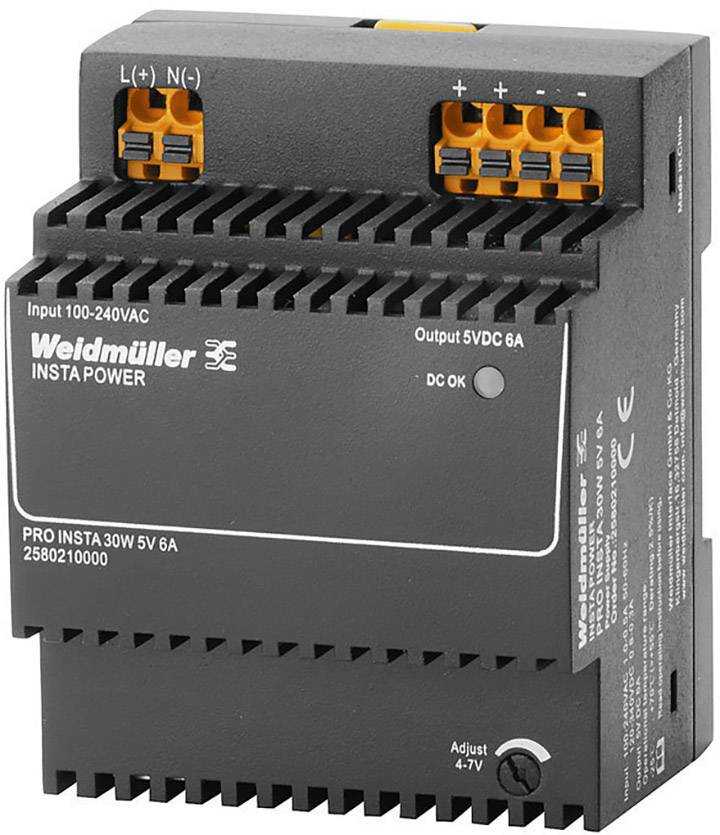

Weidmüller 2580210000 SMPSU 5 V DC 6 A 30 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Storage temperature: -40 °C to +85 °C.
- Inrush current: Max. 40 A.
- Frequency range AC 45 Hz - 65 Hz
- Current consumption AC: 0.5 A at 230 V/AC, 1 A at 100 V/AC
- Current consumption DC: 0.2 A at 370 V/DC, 0.5 A at 120 V/DC
- Rise time< 100 ms
- Number of terminals: 4 (++ / --)
- Housing design: Plastic, protective insulation
- Nominal input voltage
100-240 V/AC
120 - 340 V/DC
- Product type
SMPSU
- Min. input voltage
85 V AC
95 V DC
- Output voltage
5 V DC
- Input voltage
85 - 264 V/AC, 95 - 370 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A
30 W
- Phases
1
- Output voltage (nominal)
5 V DC
- Connection
Push-in connector
- Dim
(L x W x H) 60 x 72 x 90 mm
- Weight
256 g
- Output voltage (max.)
7 V DC
- Output voltage (min.)
4 V DC
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+70 °C
- Min. operating temperature (derating)
-25 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2580210000
- Content
1 pc(s)
- MTBF
750000 h
- Width
72 mm
- Height
90 mm
- Length
60 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
PRO INSTA 30W 5V 6A
- Efficiency
82 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2108405 Weidmüller 2580210000 SMPSU 5 V DC 6 A 30 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2108405 Weidmüller 2580210000 SMPSU 5 V DC 6 A 30 W Content 1 pc(s)
Description
Power supplies from weidmüller store has long been in the supply electrical assemblies.
They are thus in harsh industrial environments, in small trade and in the living area can be used safely and have international approvals. Weidmüller offers industry-power supplies and additional components.
