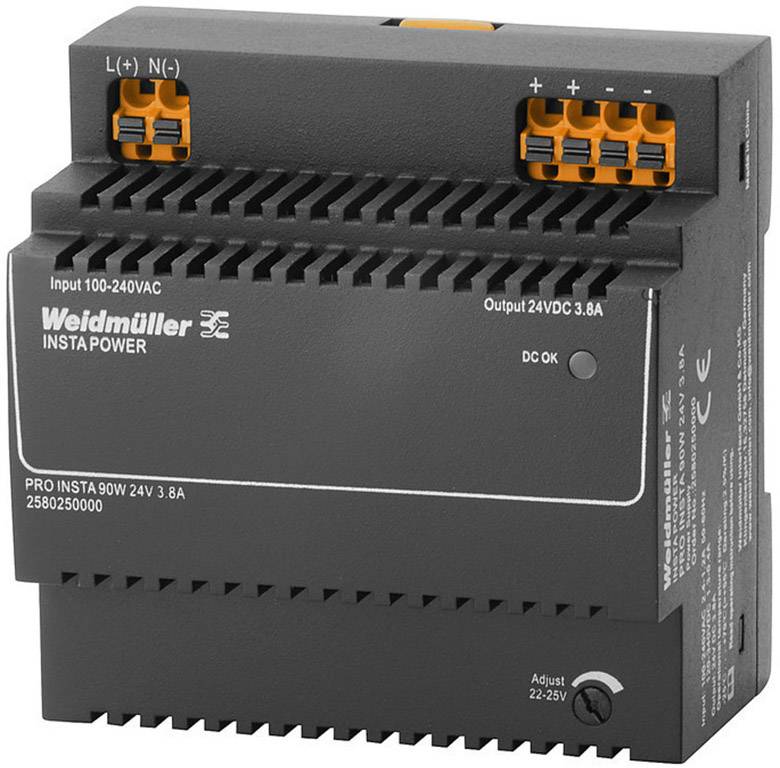

Weidmüller 2580250000 SMPSU 24 V DC 3.8 A 90 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Storage temperature: -40 °C to +85 °C.
- Inrush current: Max. 40 A.
- Frequency range AC 45 Hz - 65 Hz
- Current consumption AC: 1.2 A at 230 V/AC, 2.4 A at 100 V/AC
- Current consumption DC: 0.4 A at 370 V/DC, 1.3 A at 120 V/DC
- Rise time< 100 ms
- Number of terminals: 4 (++ / --)
- Housing design: Plastic, protective insulation
- Nominal input voltage
100-240 V/AC
120 - 340 V/DC
- Product type
SMPSU
- Min. input voltage
85 V AC
95 V DC
- Output voltage
24 V DC
- Input voltage
85 - 264 V/AC, 95 - 370 V DC
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
3.8 A
- Output current (max.) - rounded
3.8 A
90 W
- Output type (power supply units)
Fixed voltage
- Phases
1
- Output voltage (nominal)
24 V DC
- Connection
Push-in connector
- Dim
(L x W x H) 60 x 90 x 90 mm
- Weight
352 g
- Output voltage (max.)
22 V DC
- Output voltage (min.)
25 V DC
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+70 °C
- Min. operating temperature (derating)
-25 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
2580250000
- Content
1 pc(s)
- MTBF
750000 h
- Width
90 mm
- Height
90 mm
- Length
60 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
PRO INSTA 90W 24V 3.8A
- Efficiency
87 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2108412 Weidmüller 2580250000 SMPSU 24 V DC 3.8 A 90 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2108412 Weidmüller 2580250000 SMPSU 24 V DC 3.8 A 90 W Content 1 pc(s)
Description
Power supplies from weidmüller store has long been in the supply electrical assemblies.
They are thus in harsh industrial environments, in small trade and in the living area can be used safely and have international approvals. Weidmüller offers industry-power supplies and additional components.
