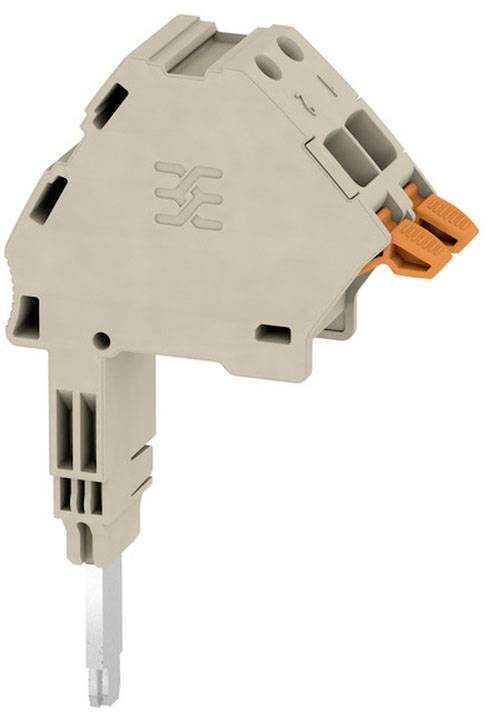

Weidmüller 2583090000 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Type
Blank
AWG max.
8
AWG (min.)
22
Stripping length (max.)
12 mm
Technical specifications
- Continuous usage temperature, min.: -60 °C
- Continuous usage temperature, max.: 130 °C
- Rated cross section: 6 mm²
- Rated voltage: 1000 V
- Rated surge voltage: 8 kV
- Pollution degree: 3
- Number of connections: 2
- Clamping range, max.: 6 mm²
- Clamping range, min.: 0.5 mm²
- Closing plate required: No
- Number of floors: 1
- Number of clamping points per floor: 2
- flammability class according to UL 94: V-0
- Installation instructions: Connector
- type: connector
- Number of potentials: 1
- conductor cross-section, multi-strand, max.: 6 mm²
- conductor cross-section, multi-strand, min.: 0.5 mm²
- number of potentials per floor: 1
- Packaging type
Piece
- Type
Blank
- AWG max.
8
- AWG (min.)
22
- Stripping length (max.)
12 mm
- Dim
(L x W x H) 44 x 15.9 x 78.5 mm
- Connection
Push-in connector
- Manufacturer part #
2583090000
- Content
5 pc(s)
- Material
Wemid
- Nominal current
82 A
- Nominal current - rounded value
82 A
- Width
15.9 mm
- Height
78.5 mm
- Length
44 mm
- Type
AAC 35 2X6
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
not relevant
