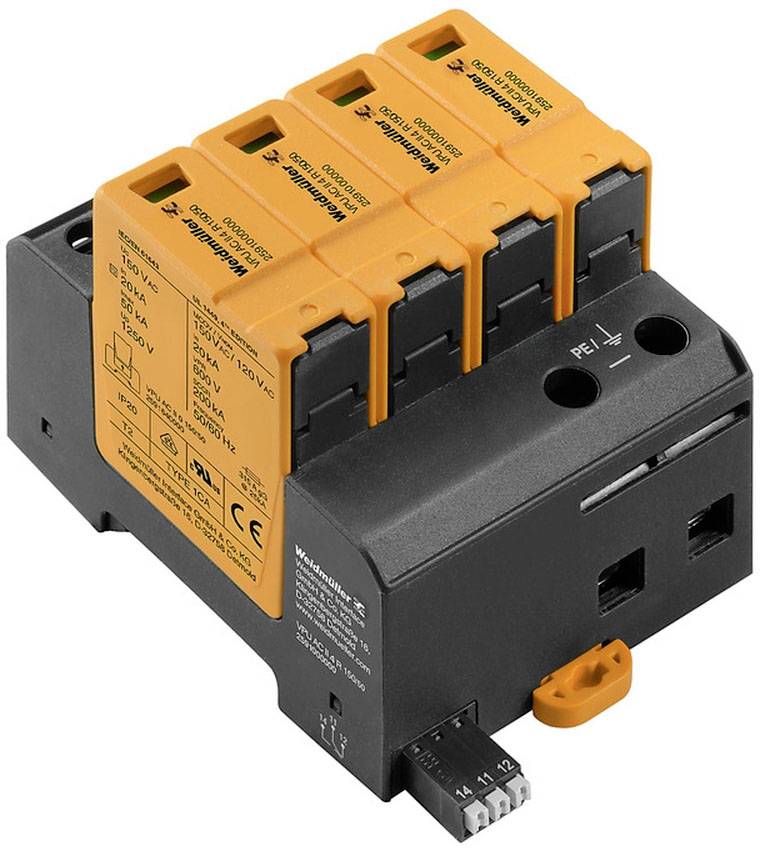

Weidmüller 2591000000 VPU AC II 4 R 150/50 Surge arrester 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight 481 g
- Humidity: 5...95 % rel. humidity
- Storage temperature: -40 °C to +85 °C.
- Design: Installation housing; 4 TE, Insta IP20
- Flammability class V-0
- Number of pins: 4
- Pollution level: 2
- Over voltage category III
- Connection type: PUSH-IN
- Optical function display: Green = OK, red = arrester defective, replace
- Segment: Power distribution
- Mounting rail TS 35
- Maximum continuous voltage, UC (AC) 150 V.
- MAINS FORM TN-C-S, TN-S
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Short circuit resistance ISCCR 50kA
- Protection level UP (type.) < : 1.25 kV
- Leakage current 0.7 mA
- Conductor connection technology: Screw connection
- Wire stripping length, measuring connection 15 mm
- Tightening torque, min.: 2 Nm
- Tightening torque, max. 4.5 Nm
- Clamping range, rated connection 16 mm²
- Clamping range, min. 4 mm²
- Clamping range, max. 35 mm²
- Conductor cross-section, single-wire, min. 0.14 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min.: 4 mm²
- Conductor cross-section, fine strand, max. 35 mm²
- Conductor cross-section, multi-strand, min.: 2.5 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Stripped length: 8 mm
- Product type
Surge arrester
- Leakage current
50 kA
- Nominal voltage
120 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40 °C up to +85 °C
IP20 (when built in)
- Manufacturer part #
2591000000
- Type
VPU AC II 4 R 150/50
- Factory colour
Orange
Black
- Dim
(W x H x D) 72 x 95 x 68 mm
- Width
72 mm
- Height
95 mm
- Depth
68 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
