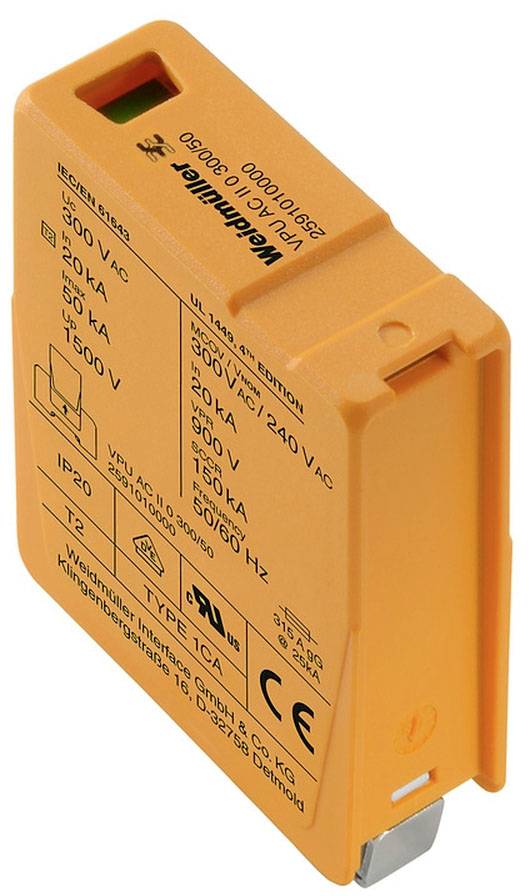

Weidmüller 2591010000 VPU AC II 0 300/50 Replacement module 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight 0.64 g
- Humidity: 5...95 % rel. humidity
- Storage temperature: -40 °C to +85 °C.
- Flammability class V-0
- Number of poles: 1
- Connection type: Plug connection
- Optical function display: Green = OK, red = arrester defective, replace
- Segment: Power distribution
- Mounting rail TS 35
- Maximum continuous voltage, UC (AC) 300 V.
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Protection level UP (type.) < : 1.5 kV
- Leakage current 0.3 mA
- Product type
Replacement module
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40 °C up to +85 °C
IP20 (when built in)
- Manufacturer part #
2591010000
- Type
VPU AC II 0 300/50
- Factory colour
Orange
- Dim
(W x H x D) 18 x 45 x 64 mm
- Width
18 mm
- Height
45 mm
- Depth
64 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
