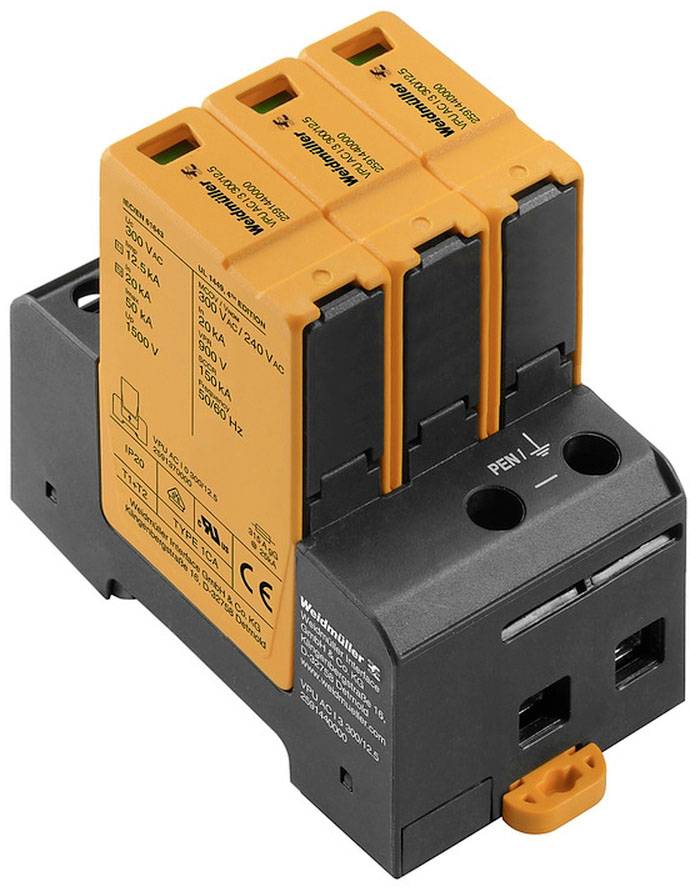

Weidmüller 2591440000 VPU AC I 3 300/12.5 Surge arrester 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Net weight 510 g
- Humidity: 5...95 % rel. humidity
- Storage temperature: -40 °C to +85 °C.
- Design: Installation housing; 3 TE, Insta IP20
- Flammability class V-0
- Number of poles: 3
- Pollution level: 2
- Over voltage category III
- Connection type: screw terminals.
- Optical function display: Green = OK, red = arrester defective, replace
- Segment: Power distribution
- Mounting rail TS 35
- Maximum continuous voltage, UC (AC) 300 V.
- Mains form TN-C.
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Short circuit resistance ISCCR 50kA
- Protection level UP (type.) < : 1.5 kV
- Leakage current 0.6 mA
- Conductor connection technology: Screw connection
- Wire stripping length, measuring connection 15 mm
- Tightening torque, min.: 2 Nm
- Tightening torque, max. 4.5 Nm
- Clamping range, rated connection 16 mm²
- Clamping range, min. 4 mm²
- Clamping range, max. 35 mm²
- Conductor cross-section, single-wire, min. 2.5 mm²
- Conductor cross-section, single-wire, max. 35 mm²
- Conductor cross-section, fine strand, min. 2.5 mm²
- Conductor cross-section, fine strand, max. 35 mm²
- Conductor cross-section, multi-strand, min.: 2.5 mm²
- Conductor cross-section, multi-strand, max. 35 mm²
- Product type
Surge arrester
- Leakage current
50 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40 °C up to +85 °C
IP20 (when built in)
- Manufacturer part #
2591440000
- Type
VPU AC I 3 300/12.5
- Factory colour
Orange
Black
- Dim
(W x H x D) 54 x 90 x 93 mm
- Width
54 mm
- Height
90 mm
- Depth
93 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
