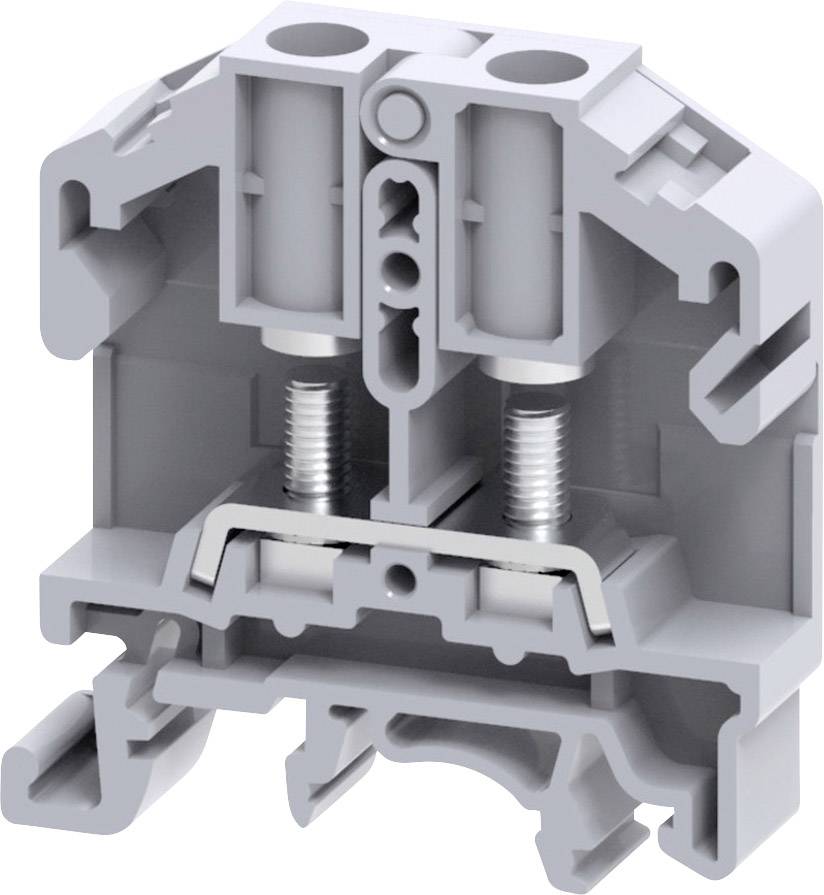

Weidmüller 2614950000 Bolt terminal 11 mm Bolt fixings Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Highlights & Details
- SRL 4 STB
Technical specifications
- Rated cross-section: 6 mm²
- Rated voltage: 1000 V
- Rated surge voltage: 8 kV
- Pollution degree: 3
- Connection direction: Side
- Number of connections: 2
- terminal plate required: Yes
- Number of floors: 1
- Number of terminal points per floor: 2
- Number of potentials: 1
- conductor cross-section, multi-wire, max.: 6 mm²
- conductor cross-section, multi-wire, min.: 1.5 mm²
- Number of potentials per floor: 1
- Packaging type
Piece
- Product type
Bolt terminal
- Features
with screw connection
- Connection
Bolt fixings
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
22
- AWG max.
8
- Clamp width
11 mm
- No. of rows
1
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Manufacturer part #
2614950000
- Content
50 pc(s)
- Type
SRL 4 STB
- Dim
(L x W x H) 51.5 x 11 x 46 mm
- Width
11 mm
- Height
46 mm
- Length
51.5 mm
- Rated surge voltage
8 kV
- Flammability rating
UL 94 V0
- Insulation material
Polyamide
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2244210 Weidmüller 2614950000 Bolt terminal 11 mm Bolt fixings Grey 50 pc(s) Piece
