Name: Weidmüller 2627650000 DC/DC converter 28.8 V 5 A 120 W
Brand: Weidmüller
SKU: 2539233

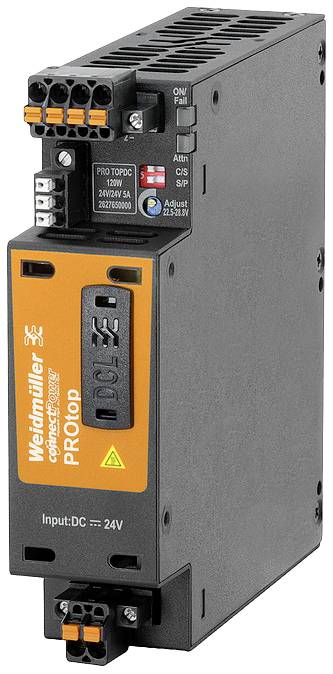

Industrial power supply with the label 'Weidmüller PROtop', showing input 'DC 24V'. Device has multiple connection and monitoring options.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Output 28.8 V / 5 A
Power 120 W
Spring-loaded connector

Technical specifications

Output voltage adjustable: YesShort-circuit proof: YesDirect mounting possible: YesRail mounting possible: YesProtection class: IP20

Product type: DC/DC converter

Input voltage (max.): 31.2 V DC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Min. input voltage: 14 V DC

Dim: (W x H x D) 35 x 130 x 125 mm

Output voltage (max.): 28.8 V

Connection: Spring-loaded connector

: 120 W

Type: closed

Operating temperature (max.): +70 °C

Operating temperature (min.): -25 °C

PSU features: Adjustable voltage output
Regulated

Width: 35 mm

Height: 130 mm

Type: PRO TOPDC 24V/24V 5A

Depth: 125 mm

Output voltage (min.): 22.5 V

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output current (max.) - rounded

Product type

Output voltage (max.)

Min. input voltage

Weidmüller 2627650000 DC/DC converter 28.8 V 5 A 120 W

Item no:2539233

Unavailable

Conrad Electronic

This article

120 W

Spring-loaded connector

31.2 V DC

5 A

DC/DC converter

28.8 V

14 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467070000 SMPSU 28.8 V 5 A 120 W

Item no:2539222

Unavailable

Conrad Electronic

120 W

Spring-loaded connector

575 V AC

5 A

SMPSU

28.8 V

320 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467230000 SMPSU 24 V 5 A

Item no:2539217

Unavailable

Conrad Electronic

Push-in button

550 V AC

5 A

SMPSU

24 V

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467240000 SMPSU 28.8 V 5 A 120 W

Item no:2539218

Unavailable

Conrad Electronic

120 W

Screws

550 V AC

5 A

SMPSU

28.8 V

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467250000 SMPSU 24 V 10 A

Item no:2539219

Unavailable

Conrad Electronic

Push-in button

550 V AC

10 A

SMPSU

24 V

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467260000 SMPSU 24 V 10 A

Item no:2539220

Unavailable

Conrad Electronic

Screws

550 V AC

10 A

SMPSU

24 V

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467270000 SMPSU 48 V 5 A

Item no:2539221

Unavailable

Conrad Electronic

Push-in button

550 V AC

5 A

SMPSU

48 V

85 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467290000 DC/DC converter 28.8 V 5 A 120 W

Item no:2539234

Unavailable

Conrad Electronic

120 W

Screws

31.2 V DC

5 A

DC/DC converter

28.8 V

14 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467300000 DC/DC converter 28.8 V 10 A 240 W

Item no:2539230

Unavailable

Conrad Electronic

240 W

Screws

31.2 V DC

10 A

DC/DC converter

28.8 V

14 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2467310000 DC/DC converter 28.8 V 20 A 480 W

Item no:2539232

Unavailable

Conrad Electronic

480 W

Screws

31.2 V DC

20 A

DC/DC converter

28.8 V

14 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2539233 Weidmüller 2627650000 DC/DC converter 28.8 V 5 A 120 W
