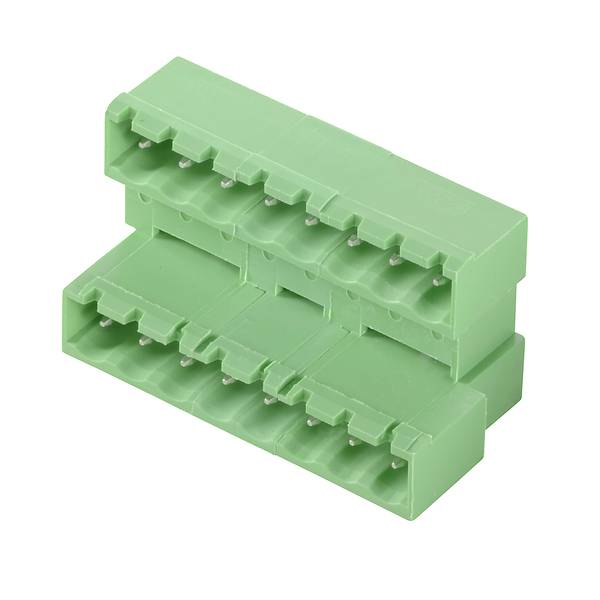

Weidmüller 2646970000 PCB connector Total number of pins 44 No. of rows 2 1 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
44
Connector type
Pin
CS
5 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (PCB terminal), 320 V, 10 A, pitch in mm: 5.00, pin number 44, THT solder connection, box
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
44
- Connector type
Pin
- Connector orientation
Parallel (to the PCB)
- No. of rows
2
- CS
5 mm
- Connection
THR
- Factory colour
Green
- Case material
PA
- Manufacturer part #
2646970000
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
CHDV 5.00/44/90G 3.5SN GN BX
- Board contact surface
Tin
- Nominal voltage
320 V
- Number of pins
44
- Pin length
3.5 mm
Flexible PCB-connector
Green
320 V
44
Pin
-40-105 °C
Solder
4 kV
THR connection
Tin
II
2
3.5 mm
5 mm
2
Other
5 mm
Fixed connector
Polyamide (PA)
0°/180° (horizontal)
Other
V0
Documents & Downloads
Datasheet
Datasheet 3767738 Weidmüller 2646970000 PCB connector Total number of pins 44 No. of rows 2 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767738 Weidmüller 2646970000 PCB connector Total number of pins 44 No. of rows 2 1 pc(s) Box
Description
Plug-in board connection with innovative connection technology for safe and intuitive handling.
