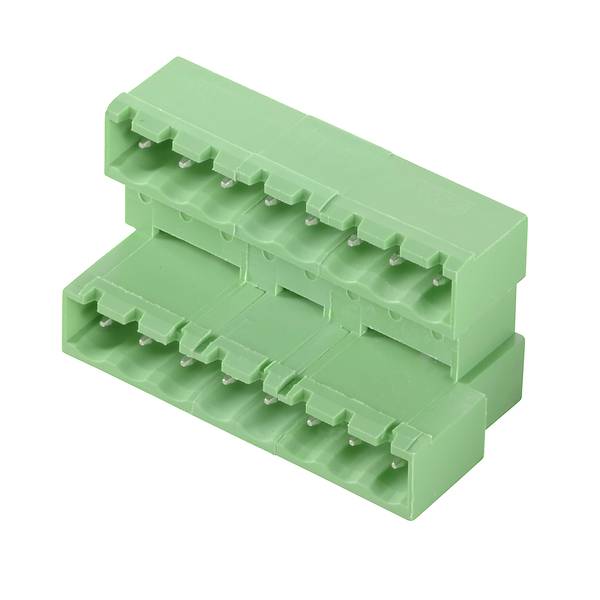

Weidmüller 2648870000 PCB connector Total number of pins 6 No. of rows 2 1 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
6
Connector type
Pin
CS
5.08 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (PCB terminal), 320 V, 10 A, pitch in mm: 5.08, pin number 6, THT solder connection, box
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
6
- Connector type
Pin
- Connector orientation
Parallel (to the PCB)
- No. of rows
2
- CS
5.08 mm
- Connection
THR
- Factory colour
Green
- Case material
PA
- Manufacturer part #
2648870000
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
CHDV 5.08/06/90G 3.5SN GN BX
- Board contact surface
Tin
- Nominal voltage
320 V
- Number of pins
6
- Pin length
3.5 mm
Flexible PCB-connector
Green
320 V
6
Pin
-40-105 °C
Solder
4 kV
THR connection
Tin
II
2
3.5 mm
5.08 mm
2
Other
5.08 mm
Fixed connector
Polyamide (PA)
0°/180° (horizontal)
Other
V0
Documents & Downloads
Datasheet
Datasheet 3767790 Weidmüller 2648870000 PCB connector Total number of pins 6 No. of rows 2 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767790 Weidmüller 2648870000 PCB connector Total number of pins 6 No. of rows 2 1 pc(s) Box
Description
Plug-in board connection with innovative connection technology for safe and intuitive handling.
