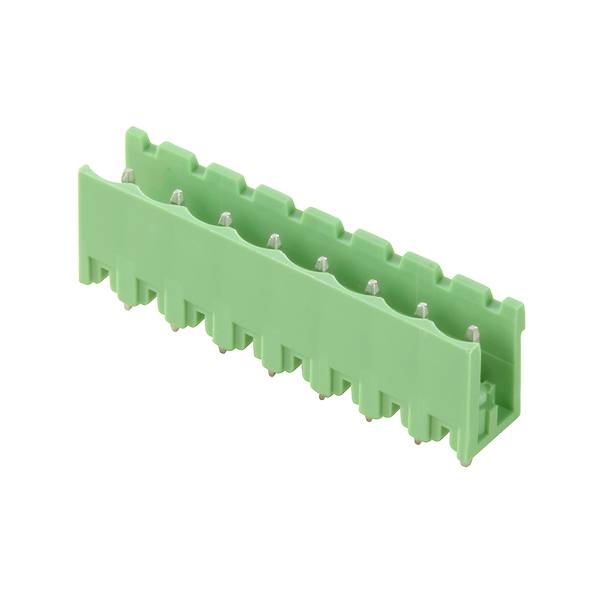

Weidmüller 2649970000 PCB connector Total number of pins 23 No. of rows 1 1 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
23
Connector type
Pin
CS
5.08 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (PCB terminal), 320 V, 15 A, pitch in mm: 5.08, pin number 23, THT solder connection, box
- No. of rows 1
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
23
- Connector type
Pin
- Connector orientation
Perpendicular (to the PCB)
- No. of rows
1
- CS
5.08 mm
- Connection
THR
- Factory colour
Green
- Case material
PA
- Manufacturer part #
2649970000
- Content
1 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
CH 5.08/23/180 3.9SN GN BX
- Board contact surface
Tin
- Nominal voltage
320 V
- Number of pins
23
- Pin length
3.9 mm
Flexible PCB-connector
Green
320 V
23
Pin
-40-105 °C
Solder
4 kV
THR connection
Tin
II
2
3.9 mm
5.08 mm
1
Other
5.08 mm
Fixed connector
Polyamide (PA)
90° (upwards vertical)
Other
V0
