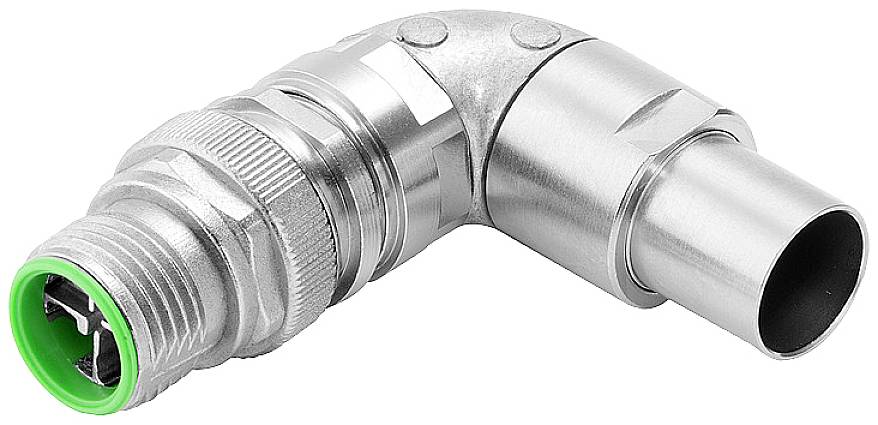

Weidmüller 2662110000 Sensor/actuator connector M12 Plug No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug
Connection side A
M12
No. of pins
8
Nominal voltage
30 V
Highlights & Details
Our service for you
Technical specifications
- Type
IE-PS-M12X-90-P-TH-SC
- Product type
Sensor/actuator connector
- Connector type
Plug
- Connection side A
M12
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connector cross-section (max.)
0.34 mm²
- Connection
Crimp
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
Gold
- Contact surface
Gold plated
- max. cross section
0.34 mm²
- Min. cross section
0.14 mm²
- Features
Shielded
- Manufacturer part #
2662110000
- Content
1 pc(s)
- Cable Ø (max.)
9 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 9 mm
- RoHS-compliant
Yes
- UKCA
not relevant
