Buy Weidmüller 2663250000 Serial continuity Jack connector Beige 5 pc(s)

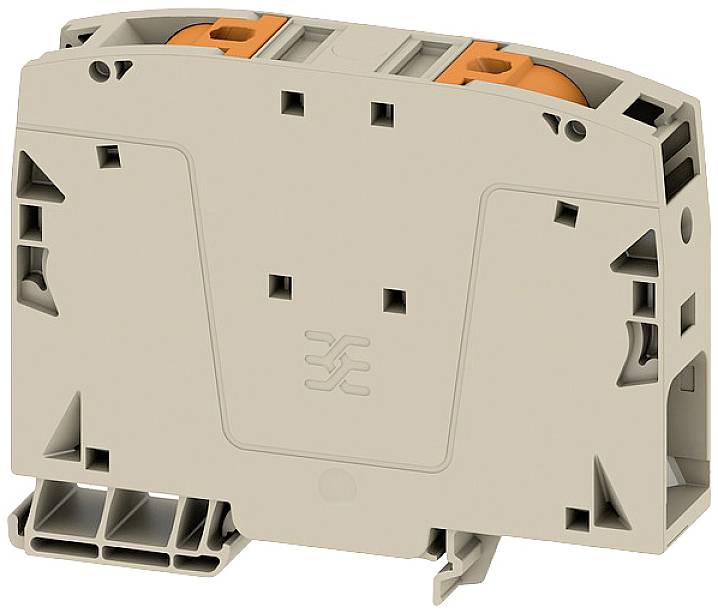

A grey electrical terminal block with side connections and orange elements on top. It is used for securely fastening wires.

Image similar

Product type

Serial continuity

Connection

Jack connector

Cross section (flexible) (max.)

70 mm²

Cross section (inflexible) (max.)

70 mm²

Nominal current - rounded value

150 A

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

A2C 50/70

Technical specifications

Product type: Serial continuity

Connection: Jack connector

Cross section (flexible) (min.): 10 mm²

Cross section (flexible) (max.): 70 mm²

Cross section (inflexible) (min.): 10 mm²

Cross section (inflexible) (max.): 70 mm²

No. of rows: 1

Pins per row: 2

Factory colour: Beige

Nominal current: 150 A

Nominal current - rounded value: 150 A

Nominal voltage: 1000 V

Manufacturer part #: 2663250000

Content: 5 pc(s)

Type: A2C 50/70

Dim: (L x W) 101.5 mm x 20 mm

Width: 20 mm

Length: 101.5 mm

RoHS-compliant: Yes

Flammability rating: V0

Insulation material: Thermoplastic

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Type

Nominal current - rounded value

Connection

Factory colour

Content

Product type

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Weidmüller 2663250000 Serial continuity Jack connector Beige 5 pc(s)

Item no:2537496

This article

A2C 50/70

150 A

Jack connector

Beige

5 pc(s)

Serial continuity

70 mm²

10 mm²

Weidmüller 2674590000 Serial continuity Push-in connector, Jack connector Dark beige 100 pc(s)

Item no:2537475

A2C 1.5 DL

17.5 A

Push-in connectorJack connector

Dark beige

100 pc(s)

Serial continuity

1.5 mm²

0.5 mm²

Weidmüller 2674600000 Serial continuity Push-in connector, Jack connector Blue 100 pc(s)

Item no:2537476

A2C 1.5 DL BL

17.5 A

Push-in connectorJack connector

Blue

100 pc(s)

Serial continuity

1.5 mm²

0.5 mm²

Weidmüller 2674610000 PG terminal Jack connector Green-yellow 50 pc(s)

Item no:2537477

A2C 1.5 PE DL

Jack connector

Green-yellow

50 pc(s)

PG terminal

1.5 mm²

0.5 mm²

Weidmüller 2674690000 Serial continuity Push-in connector, Jack connector Dark beige 100 pc(s)

Item no:2537485

A2C 2.5 DL

24 A

Push-in connectorJack connector

Dark beige

100 pc(s)

Serial continuity

2.5 mm²

4 mm²

0.5 mm²

Weidmüller 2551510000 Serial continuity Jack connector Beige 10 pc(s)

Item no:2537489

A2C 35

125 A

Jack connector

Beige

10 pc(s)

Serial continuity

16 mm²

35 mm²

2.5 mm²

10 mm²

Weidmüller 2663320000 Serial continuity Jack connector Beige 1 pc(s)

Item no:2537497

A2C 50/70 3FT

150 A

Jack connector

Beige

1 pc(s)

Serial continuity

70 mm²

10 mm²

Weidmüller 2663390000 Serial continuity Jack connector Beige 1 pc(s)

Item no:2537498

A2C 50/70 3FT-DM

150 A

Jack connector

Beige

1 pc(s)

Serial continuity

70 mm²

10 mm²

Weidmüller 2663310000 Serial continuity Jack connector Beige 1 pc(s)

Item no:2537499

A2C 50/70 3FT-FE

150 A

Jack connector

Beige

1 pc(s)

Serial continuity

70 mm²

10 mm²

Weidmüller 2663380000 Serial continuity Jack connector Beige 1 pc(s)

Item no:2537500

A2C 50/70 3FT-FE-DM

150 A

Jack connector

Beige

1 pc(s)

Serial continuity

70 mm²

10 mm²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2537496 Weidmüller 2663250000 Serial continuity Jack connector Beige 5 pc(s)
