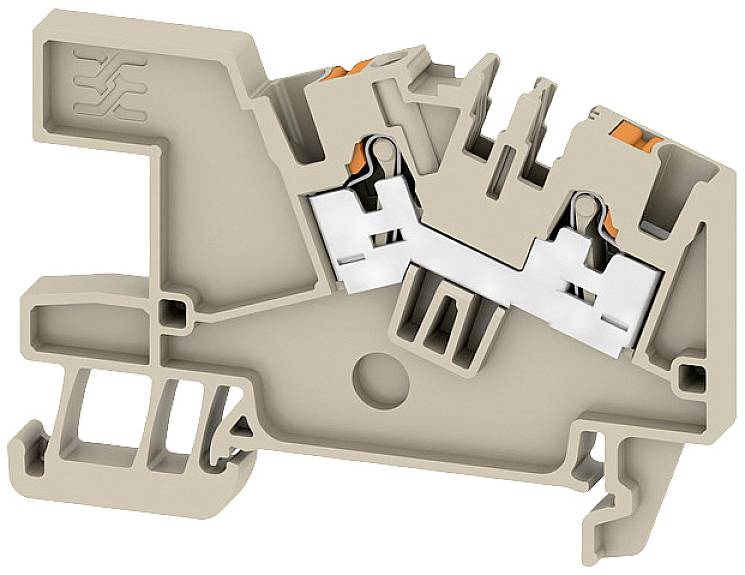

Weidmüller 2668660000 Industrial terminal block 5.1 mm Jack connector Beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial terminal block
Connection
Jack connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Highlights & Details
- AITB 2.5 BB 2C
Technical specifications
- Packaging type
Piece
- Product type
Industrial terminal block
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.1 mm
- Factory colour
Beige
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
2668660000
- Content
50 pc(s)
- Type
AITB 2.5 BB 2C
- Dim
(L x W x H) 63.8 x 5.1 x 63.8 mm
- Width
5.1 mm
- Height
63.8 mm
- Length
63.8 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537691 Weidmüller 2668660000 Industrial terminal block 5.1 mm Jack connector Beige 50 pc(s) Piece
