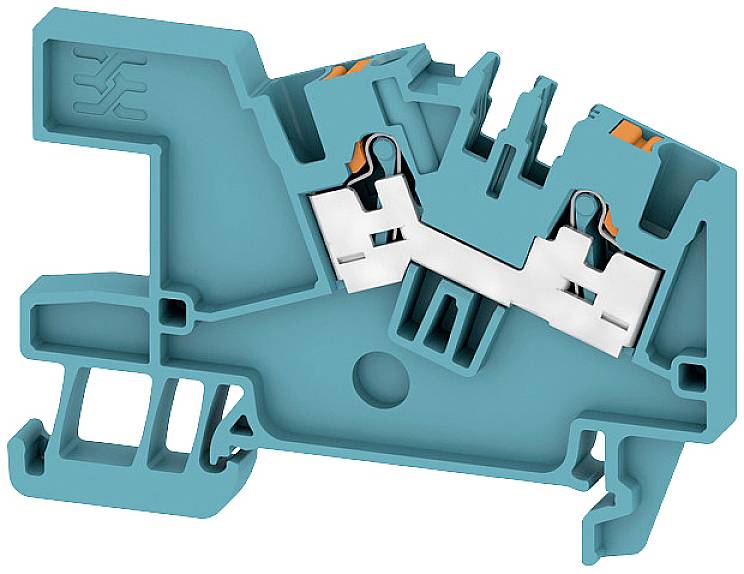

Weidmüller 2668670000 Industrial terminal block Jack connector Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Jack connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Technical specifications
- Product type
Industrial terminal block
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
2668670000
- Content
50 pc(s)
- Type
AITB 2.5 BB 2C BL
- Dim
(L x W) 63.8 mm x 5.1 mm
- Width
5.1 mm
- Length
63.8 mm
- RoHS-compliant
Yes
- Weight
388.00
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537692 Weidmüller 2668670000 Industrial terminal block Jack connector Blue 50 pc(s)
