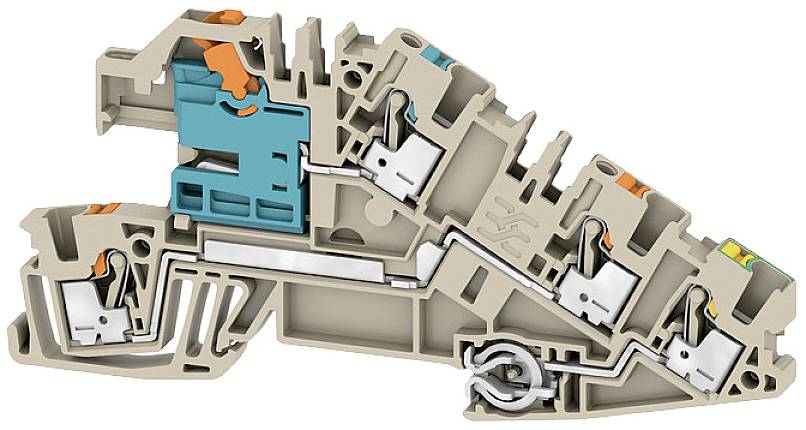

Weidmüller 2668950000 Industrial terminal block Jack connector Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Jack connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Number (Package size 50 pc(s))
Total (€ 2.69 / piece)
€ 134.45
plus VAT.
Only 5 Set(s) available
Technical specifications
- Product type
Industrial terminal block
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Beige
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
250 V
- Manufacturer part #
2668950000
- Content
50 pc(s)
- Type
AITB 2.5 BB NDT-L-PE
- Dim
(L x W) 103 mm x 5.1 mm
- Width
5.1 mm
- Length
103 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537698 Weidmüller 2668950000 Industrial terminal block Jack connector Beige 50 pc(s)
