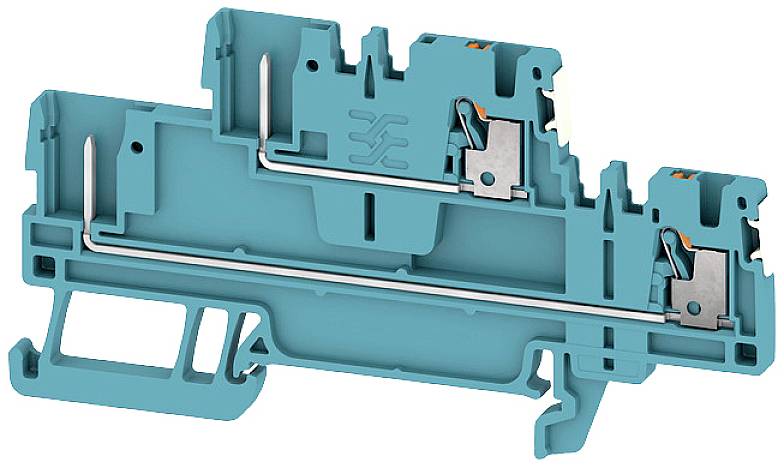

Weidmüller 2675780000 Serial continuity 3.5 mm Jack connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Jack connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Highlights & Details
- APGTB 1.5 2T 4C/2 DL BL
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
+ push-in spring bracket
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Clamp width
3.5 mm
- No. of rows
2
- Pins per row
2
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
2675780000
- Content
50 pc(s)
- Type
APGTB 1.5 2T 4C/2 DL BL
- Dim
(L x W x H) 84.5 x 3.5 x 84.5 mm
- Width
3.5 mm
- Height
84.5 mm
- Length
84.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
