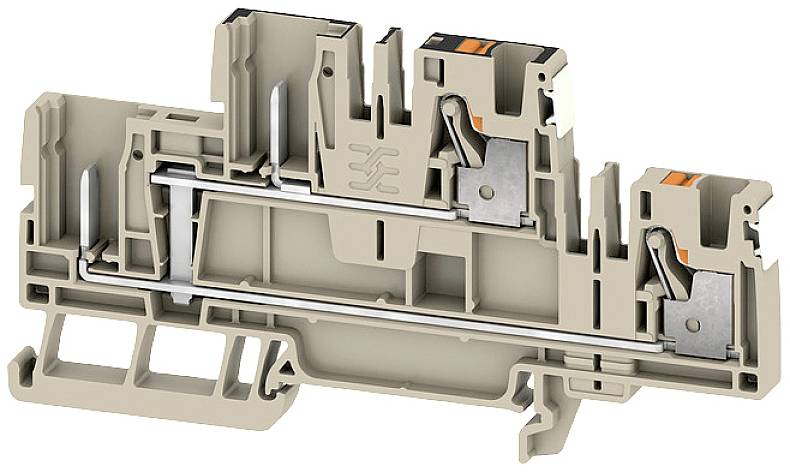

Weidmüller 2676090000 Serial continuity 6.1 mm Jack connector Beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Jack connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
6.1 mm
- No. of rows
2
- Pins per row
2
- Factory colour
Beige
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
2676090000
- Content
50 pc(s)
- Type
APGTB 4 2T VL 4C/2 DL
- Dim
(L x W x H) 100 x 6.1 x 100 mm
- Width
6.1 mm
- Height
100 mm
- Length
100 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
