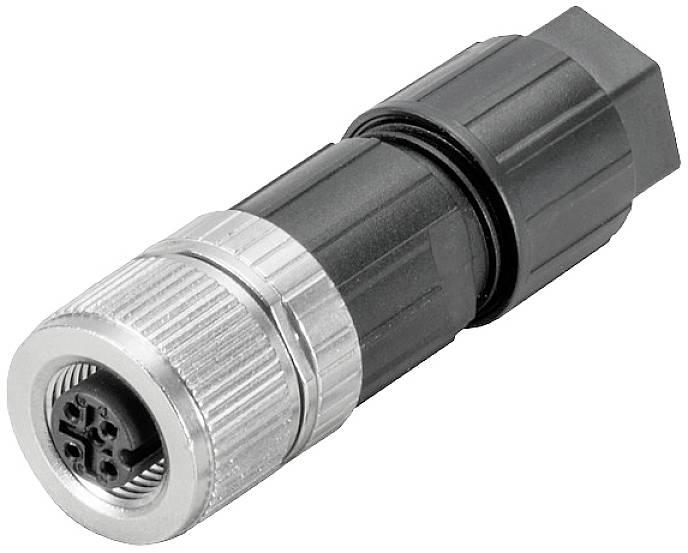

Image similar

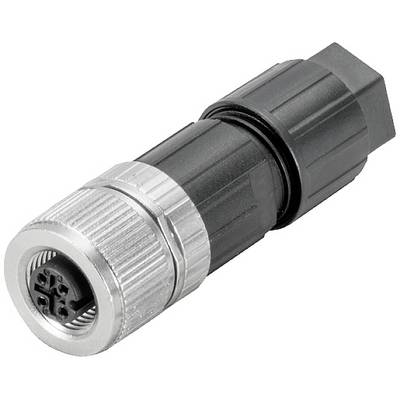

Image similar
Weidmüller 2681500000 Sensor/actuator connector M12 Socket No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket
Connection side A
M12
No. of pins
4
Nominal voltage
250 V
Technical specifications
- Type
SAIBP-4A-4/8-M12
- Product type
Sensor/actuator connector
- Connector type
Socket
- Connection side A
M12
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Outside Ø
8 mm
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Push-in connector
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
Nickel plated and gold plated
- Contact surface
Nickel plated and gold plated
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
IP67
- Manufacturer part #
2681500000
- Content
1 pc(s)
- Cable Ø
8 mm
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 8 mm
- RoHS-compliant
Yes
- UKCA
yes
