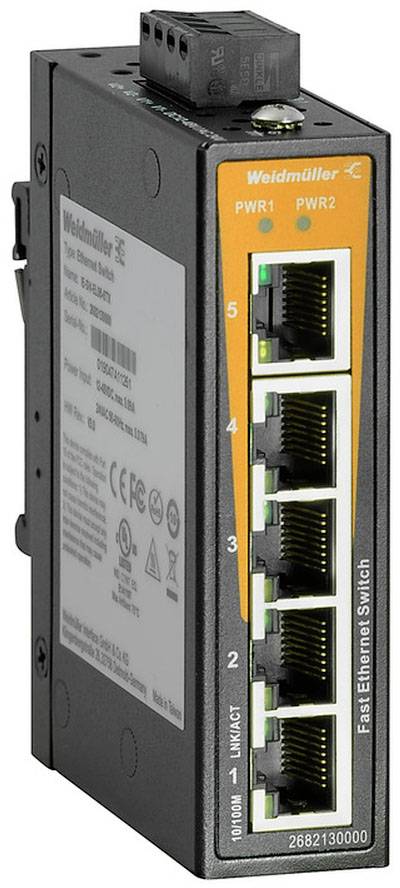

Weidmüller 2682130000 IE-SW-EL05-5TX Industrial Ethernet switch 5 ports 100 MBit/s PoE
EAN:
Part number:
Item no:
Technical specifications
- Polarity reversal protection: Yes
- Housing base material: Metal
- Mounting type: Mounting rail
- Humidity: 5 to 95 % (non-condensing)
- Storage temperature: -40 °C - +85 °C
- Overcurrent protection: Yes
- Bandwidth Backplane bus: 1 Gbps
- Size of MAC table: 1 K
- Packet buffer size: 448 kbit
- Connection: 1 removable 4-pin terminal block
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- No. of 100 Mbps/1Gbps/10Gbps ports
5 x
- 10/100 Mbps ports
5 x
- Port type
RJ45
- Auto-uplink at each port
Yes
- Router features
PoE
- Power supply (LOV)
via terminal
- Weight
205 g
- Width
26.1 mm
- Height
95 mm
- Depth
70 mm
- Type
IE-SW-EL05-5TX
- Interfaces
RJ45
IP30
- Factory colour
Multicolour
- Operating voltage
24 V DC/AC
- Max. ambient temperature
+75 °C
- Min. ambient temperature
-40 °C
- Port
5 ports
- UKCA
yes
