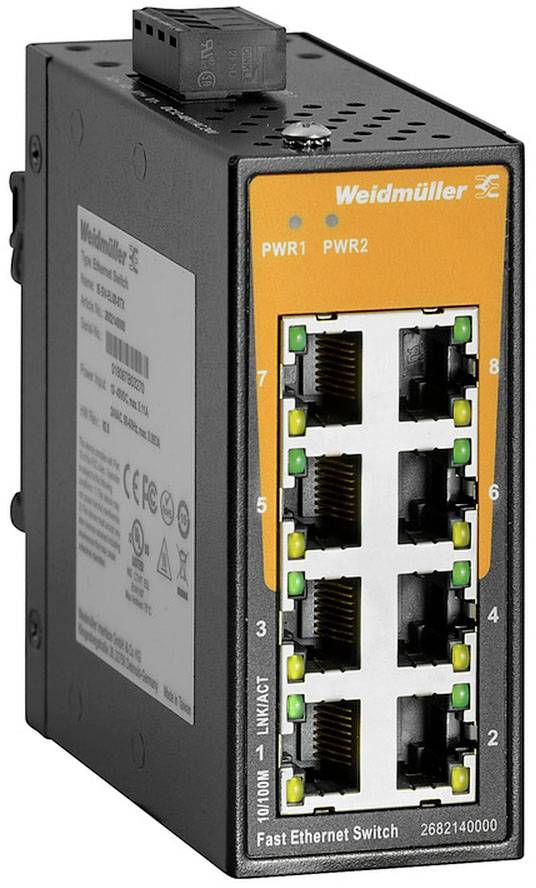

Weidmüller 2682140000 IE-SW-EL08-8TX Industrial Ethernet switch 8 ports 10 / 100 MBit/s
EAN:
Part number:
Item no:
Technical specifications
- Polarity reversal protection: Yes
- Housing base material: Metal
- Mounting type: Mounting rail
- Humidity: 5 to 95 % (non-condensing)
- Storage temperature: -40 °C - +85 °C
- Overcurrent protection: Yes
- Bandwidth Backplane bus: 1.6 Gbps
- Size of MAC table: 1 K
- Packet buffer size: 448 kbit
- Connection: 1 removable 4-pin terminal block
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- No. of 100 Mbps/1Gbps/10Gbps ports
8 x
- 10/100 Mbps ports
8 x
- Port type
RJ45
- Power supply (LOV)
via terminal
- Weight
334 g
- Width
41 mm
- Height
95 mm
- Depth
90 mm
- Type
IE-SW-EL08-8TX
- Interfaces
RJ45
IP30
- Factory colour
Multicolour
- Operating voltage
24 V DC/AC
- Max. ambient temperature
+75 °C
- Min. ambient temperature
-40 °C
- Port
8 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2241250 Weidmüller 2682140000 IE-SW-EL08-8TX Industrial Ethernet switch 8 ports 10 / 100 MBit/s
