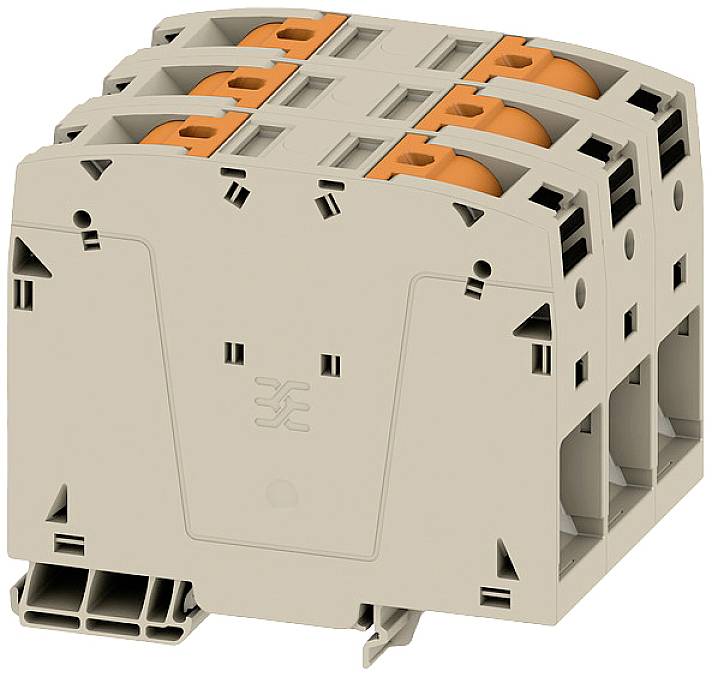

Weidmüller 2694140000 Serial continuity 75 mm Jack connector Beige 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Jack connector
Cross section (flexible) (max.)
120 mm²
Cross section (inflexible) (max.)
120 mm²
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
+ push-in spring bracket
- Connection
Jack connector
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
120 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
120 mm²
- Clamp width
75 mm
- No. of rows
1
- Factory colour
Beige
- Nominal current
232 A
- Nominal current - rounded value
232 A
- Nominal voltage
1000 V
- Manufacturer part #
2694140000
- Content
1 pc(s)
- Type
A2C 95/120 3FT
- Dim
(L x W x H) 101.5 x 75 x 101.5 mm
- Width
75 mm
- Height
101.5 mm
- Length
101.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537519 Weidmüller 2694140000 Serial continuity 75 mm Jack connector Beige 1 pc(s) Piece
