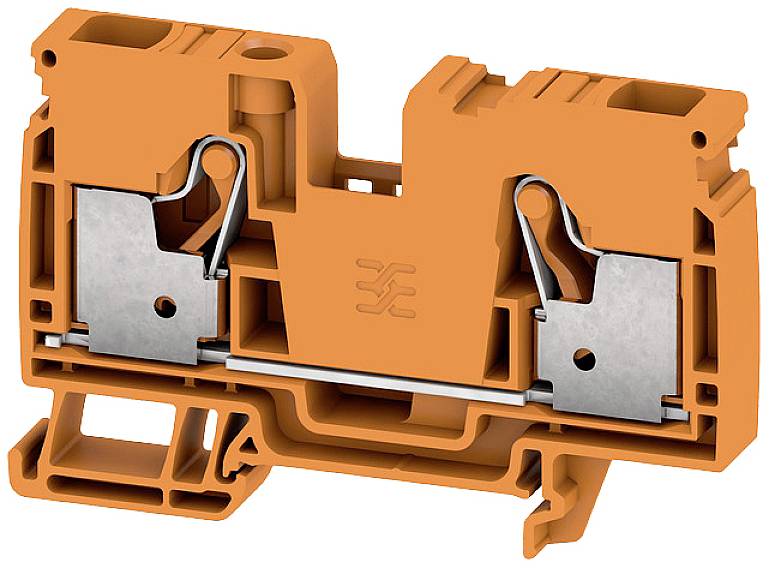

Weidmüller 2697900000 Serial continuity 10 mm Jack connector Orange 25 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Jack connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Highlights & Details
- A2C 10 OR
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
+ push-in spring bracket
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
10 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Orange
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
1000 V
- Manufacturer part #
2697900000
- Content
25 pc(s)
- Type
A2C 10 OR
- Dim
(L x W x H) 80.5 x 10 x 80.5 mm
- Width
10 mm
- Height
80.5 mm
- Length
80.5 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Orange
- Insulation material
Thermoplastic
- UKCA
not relevant
