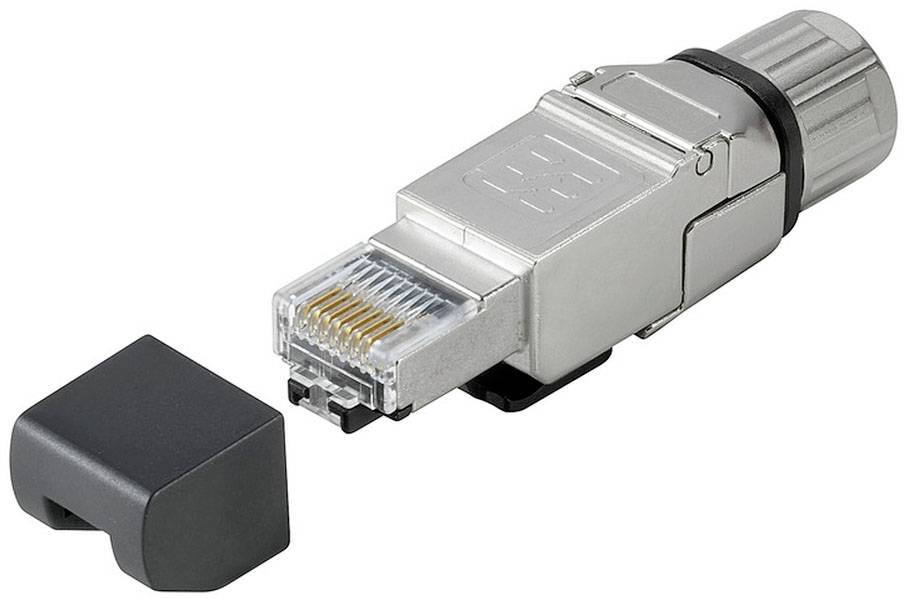

Weidmüller 2703460000 RJ45 connector Plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
RJ45 connector
Connector type
Plug
Connector standard
RJ45
Connection side A
RJ45
Connection side B
RJ45
Technical specifications
- Housing base material: Die-cast zinc, nickel-plated
- Insulation resistance:> 500 MΩ
- Plug cycles: 750
- Speed: 10 GBit
- Shielding: 360° all-round closed
- Shell diameter: 5 mm - 9 mm
- current carrying capacity at 50 °C: 1 A
- insulation diameter, min.: 0.85 mm
- insulation diameter, max.: 1.1 mm
- connection diameter, single-wire: 0.41 mm - 0.51 mm
- conductor cross-section, single-wire (AWG): Conductor cross-section AWG 26 - AWG 24
- wire diameter, fine wire: 0.46 mm - 0.61 mm
- wire cross-section, fine wire (AWG): AWG 27 - AWG 24
- contact resistance:< 20 mΩ
- withstand voltage contact / contact:> 1000 V/DC
- withstand voltage contact / shield:> 1500 V/DC
- Type
IE-PS-RJ45-FH-180-B-1.1-CG
- Product type
RJ45 connector
- Connector type
Plug
- Connector standard
RJ45
- Connection side A
RJ45
- Connection side B
RJ45
- Connection
Insulation piercing connector
- Contact surface
Ni/Au
IP20
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
2703460000
- Content
1 pc(s)
- Cable Ø (max.)
9 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 9 mm
- UKCA
yes
