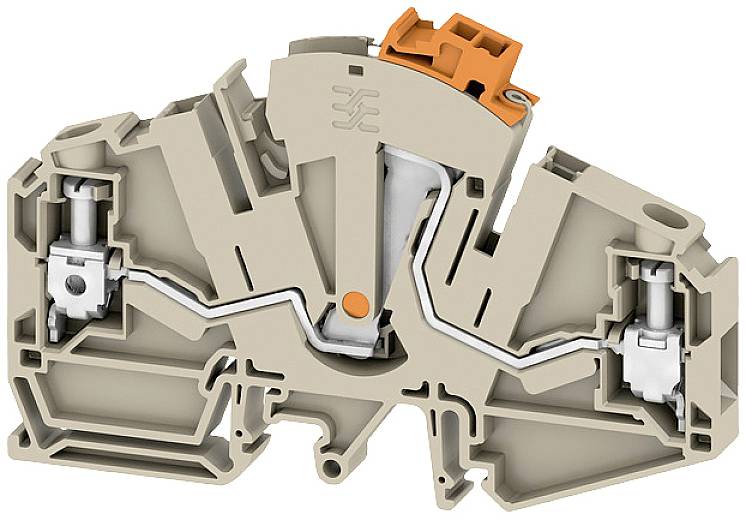

Weidmüller 2710090000 Serial test terminal 8.1 mm Screws Beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial test terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Highlights & Details
- WTTB 6
Technical specifications
- Packaging type
Piece
- Product type
Serial test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
8.1 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Beige
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Manufacturer part #
2710090000
- Content
50 pc(s)
- Type
WTTB 6
- Dim
(L x W x H) 100 x 8.1 x 100 mm
- Width
8.1 mm
- Height
100 mm
- Length
100 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2541021 Weidmüller 2710090000 Serial test terminal 8.1 mm Screws Beige 50 pc(s) Piece
