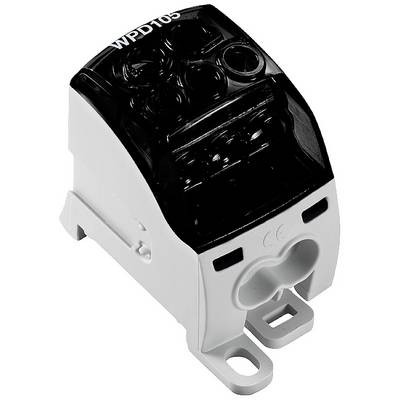

Image similar

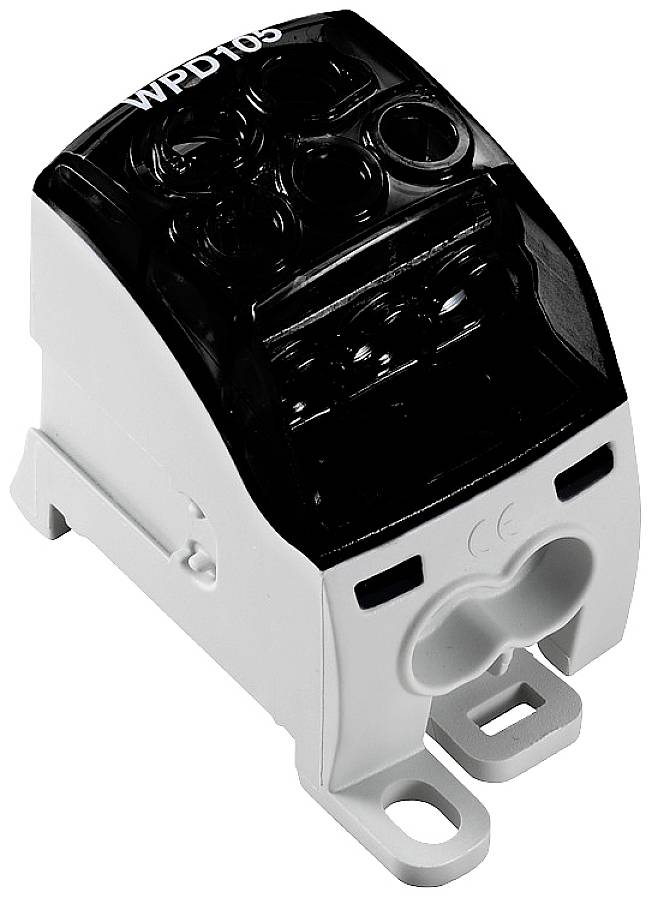

Image similar
Weidmüller 2725410000 Distribution block 35.6 mm Screws Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
35 mm²
Highlights & Details
- WPD 105 1X35+1X16/2X25+3X16 BK
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
built-in jumper
- Connection
Screws
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (max.)
35 mm²
- Clamp width
35.6 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Black
- Nominal current
214 A
- Nominal current - rounded value
214 A
- Manufacturer part #
2725410000
- Content
1 pc(s)
- Type
WPD 105 1X35+1X16/2X25+3X16 BK
- Dim
(L x W x H) 70 x 35.6 x 70 mm
- Width
35.6 mm
- Height
70 mm
- Length
70 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
yes
