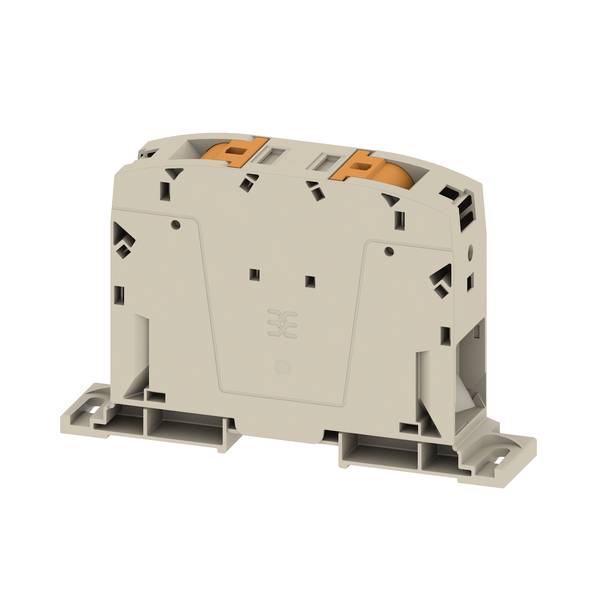

Weidmüller 2728770000 Serial continuity Plug & Clip Beige 5 pc(s)
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
185 mm²
Cross section (inflexible) (max.)
185 mm²
Nominal current - rounded value
309 A
Datasheet (PDF)
Highlights & Details
Through terminal block, PUSH IN, dark beige, 150 mm², 309 A, 1000 V, number of connections 2
- A2C 150/185-DM
Technical specifications
- Product type
Serial continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
50 mm²
- Cross section (flexible) (max.)
185 mm²
- Cross section (inflexible) (min.)
50 mm²
- Cross section (inflexible) (max.)
185 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Beige
- Nominal current
309 A
- Nominal current - rounded value
309 A
- Nominal voltage
1000 V
- Manufacturer part #
2728770000
- Content
5 pc(s)
- Type
A2C 150/185-DM
- Dim
(L x W) 98 mm x 31 mm
- Width
31 mm
- Length
98 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750223 Weidmüller 2728770000 Serial continuity Plug & Clip Beige 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3750223 Weidmüller 2728770000 Serial continuity Plug & Clip Beige 5 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
