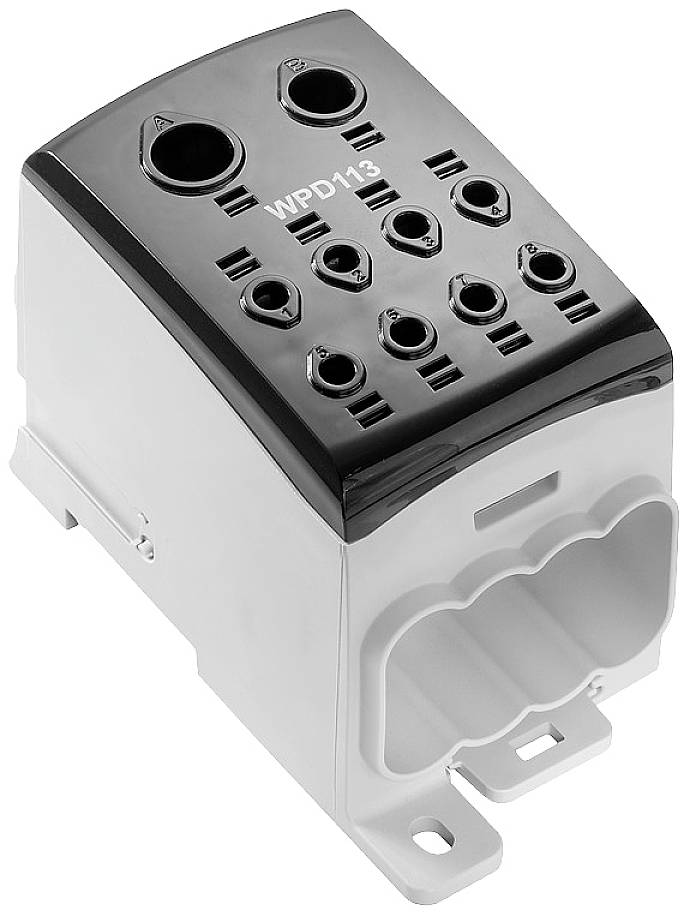

Weidmüller 2730360000 Distribution block Screws Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution block
Connection
Screws
Cross section (inflexible) (max.)
185 mm²
Nominal current - rounded value
353 A
Highlights & Details
- WPD 113 1X185+1X150/8X35 BK
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
with screw connection
- Connection
Screws
- Cross section (inflexible) (max.)
185 mm²
- No. of rows
1
- Pins per row
10
- Number of pins
10
- Factory colour
Black
- Nominal current
353 A
- Nominal current - rounded value
353 A
- Nominal voltage
1000 V
- Manufacturer part #
2730360000
- Content
1 pc(s)
- Type
WPD 113 1X185+1X150/8X35 BK
- Dim
(L x W) 126.3 mm x 62.6 mm
- Width
62.6 mm
- Length
126.3 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
yes
