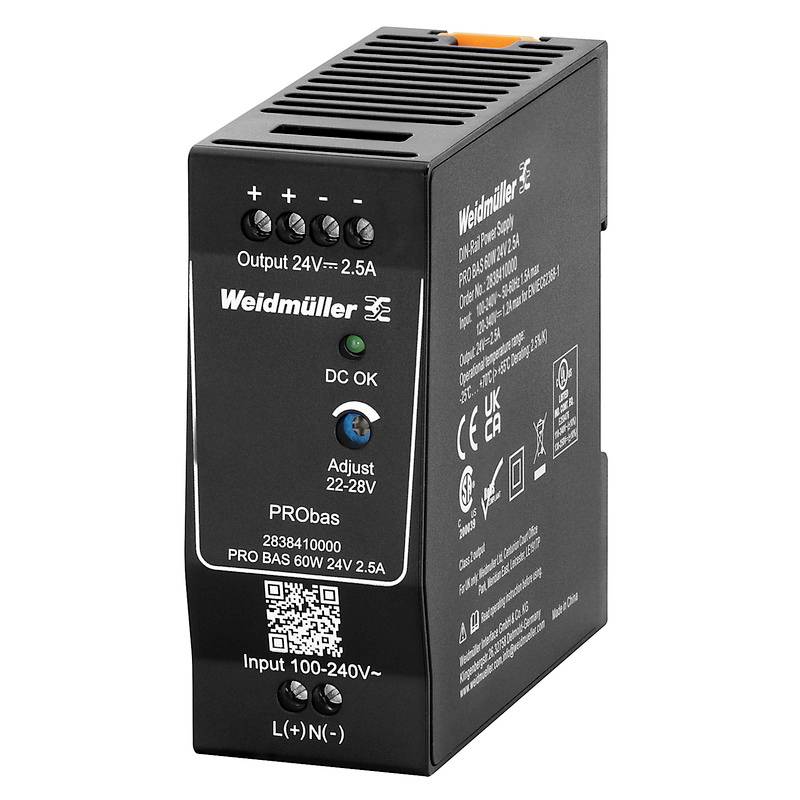

Weidmüller 2838410000 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
60 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V
- Dim
(L x W x H) 85 x 36 x 90 mm
- Weight
0.259 kg
- Output voltage (max.)
28 V
- Output voltage (min.)
22 V
- Manufacturer part #
2838410000
- Content
1 pc(s)
- PSU features
Regulated
- Width
36 mm
- Height
90 mm
- Length
85 mm
- Type
PRO BAS 60W 24V 2.5A
36 mm
90 mm
85 mm
FALSE
FALSE
AC/DC
60 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
FALSE
TRUE
24 V
2.5 A
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2851829 Weidmüller 2838410000 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)
Description
Power supply device for providing DC voltage.
This text is machine translated.
This text is machine translated.
