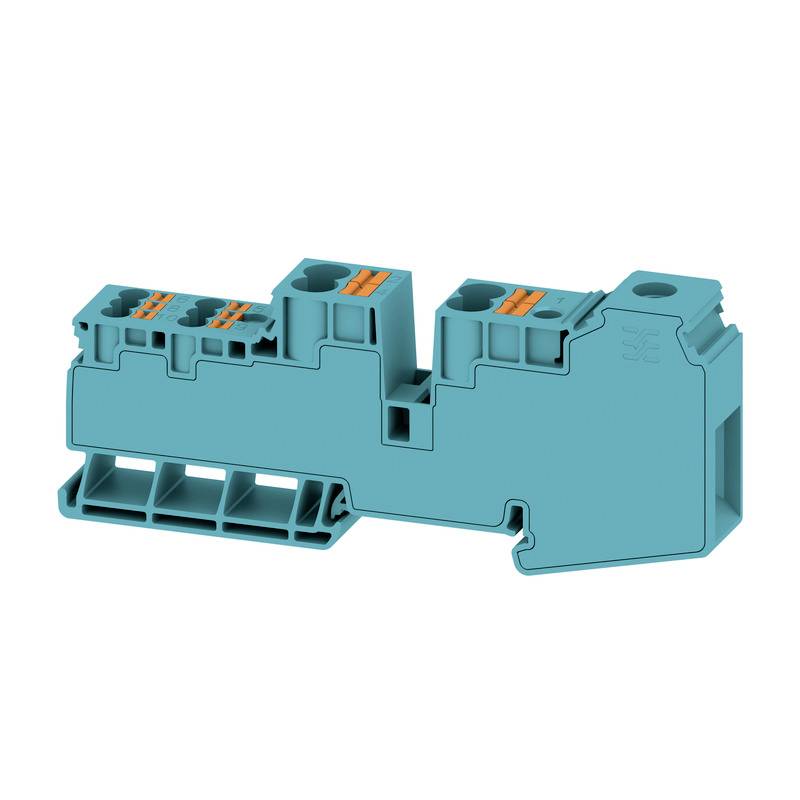

Weidmüller 2860560000 Distribution block Screws Blue 20 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Content
20 pc(s)
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
35 mm²
- Factory colour
Blue
- Manufacturer part #
2860560000
- Content
20 pc(s)
- Type
AWPD 35 4X6/6X2.5 BL
- RoHS-compliant
Yes
- Connector colour
Blue
DIN rail (top hat rail) 35 mm
Blue
1000 V
125 m
-60-110 °C
V0
16.2 mm
50 mm
FALSE
Screw connection
1
11
1.5-35 mm²
1.5-35 mm²
1.5-35 mm²
Thermoplastic
110 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2852252 Weidmüller 2860560000 Distribution block Screws Blue 20 pc(s)
Description
Terminal block for potential distribution. With high contact density.
