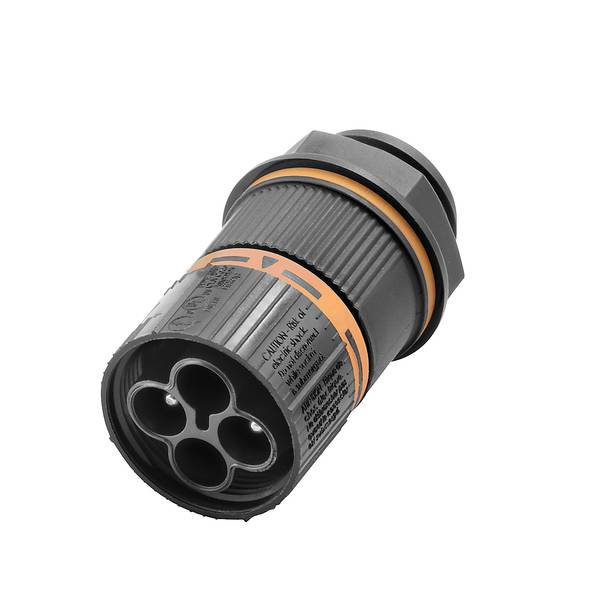

Weidmüller 2860650000 DIN connector Plug Total number of pins: 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Plug
Total no. of pins
2
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
RC M P2 M20 SP
- Product type
DIN connector
- Connector type
Plug
- Total no. of pins
2
- Connection
Screws
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
17.5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
17.5 A
- Seal
Screw fastener
- Nominal voltage
500 V
- Contact material
Brass
- Cable Ø (max.)
13 mm
- Cable Ø up to
7 mm
- Case material
Plastic
- Manufacturer part #
2860650000
- Cable Ø range
7 - 13 mm
- Number of pins
2
- (Ø)
20 mm
- max. cross section
4 mm²
- Min. cross section
0.5 mm²
- Cross-section range
0.5 - 4 mm²
IP68 (mounted)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748168 Weidmüller 2860650000 DIN connector Plug Total number of pins: 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748168 Weidmüller 2860650000 DIN connector Plug Total number of pins: 2 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
