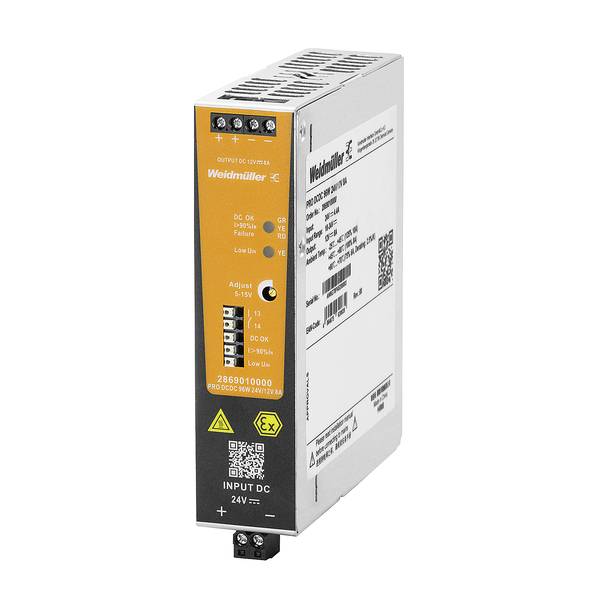

Weidmüller 2869020000 DC/DC converter 12 V 9.6 A 96 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Mounting rail mounting, wall mounting
- Product type
DC/DC converter
- Min. input voltage
28 V DC
- Input voltage (max.)
58 V DC
- Max. output current
9.6 A
- Output current (max.) - rounded
9.6 A
96 W
- Output voltage (nominal)
12 V
- Connection
Screws
- Dim
(L x W) 120 mm x 32 mm
- Output voltage (max.)
15 V
- Output voltage (min.)
5 V
- Manufacturer part #
2869020000
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
32 mm
- Length
120 mm
IP20
- Type
PRO DCDC 96W 48V/12V 8A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3745714 Weidmüller 2869020000 DC/DC converter 12 V 9.6 A 96 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3745714 Weidmüller 2869020000 DC/DC converter 12 V 9.6 A 96 W Content 1 pc(s)
Description
The DC/DC converter protects the system from failures in order to guarantee a maximum availability. It compensates voltage fluctuations and regenerates the output voltage by ensuring stable voltage at the end of long cables.
