Weidmüller 2871980000 Serial continuity Plug & Clip 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
2871980000
- Content
50 pc(s)
- Type
AL2C 4 FE
- Dim
(L x W) 39.5 mm x 6.1 mm
- Width
6.1 mm
- Length
39.5 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750513 Weidmüller 2871980000 Serial continuity Plug & Clip 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750513 Weidmüller 2871980000 Serial continuity Plug & Clip 50 pc(s) Piece
Description

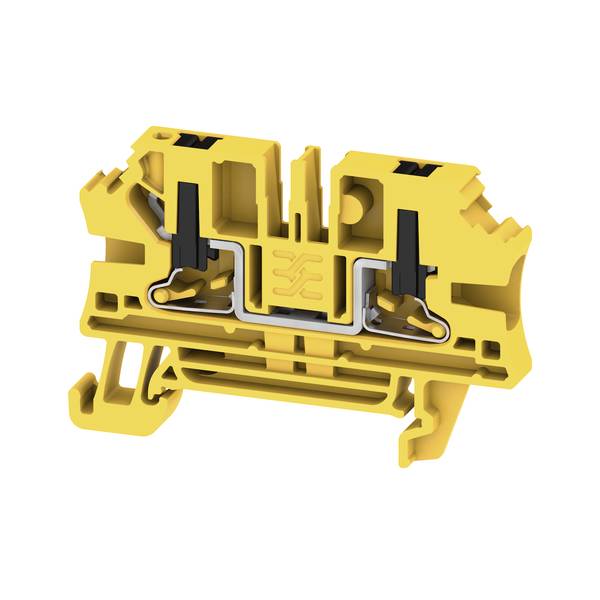

A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
