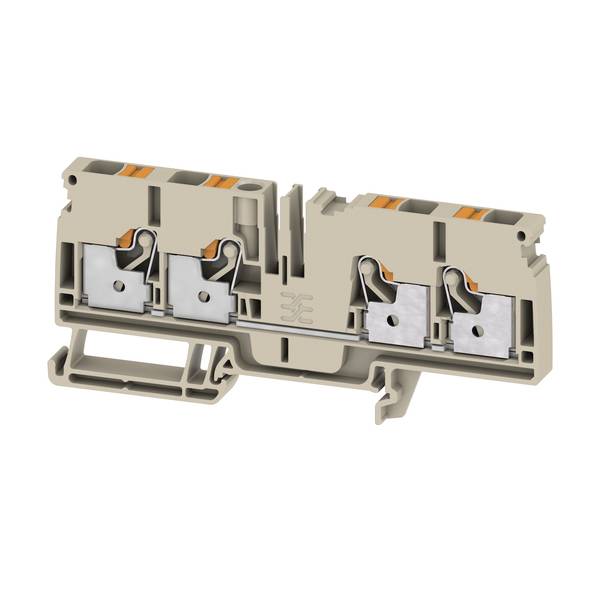

Weidmüller 2881450000 Serial continuity Plug & Clip Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Technical specifications
- Product type
Serial continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
4
- Factory colour
Beige
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Manufacturer part #
2881450000
- Content
50 pc(s)
- Type
A4C 6
- Dim
(L x W) 45.5 mm x 8.1 mm
- Width
8.1 mm
- Length
45.5 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750421 Weidmüller 2881450000 Serial continuity Plug & Clip Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3750421 Weidmüller 2881450000 Serial continuity Plug & Clip Beige 50 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
