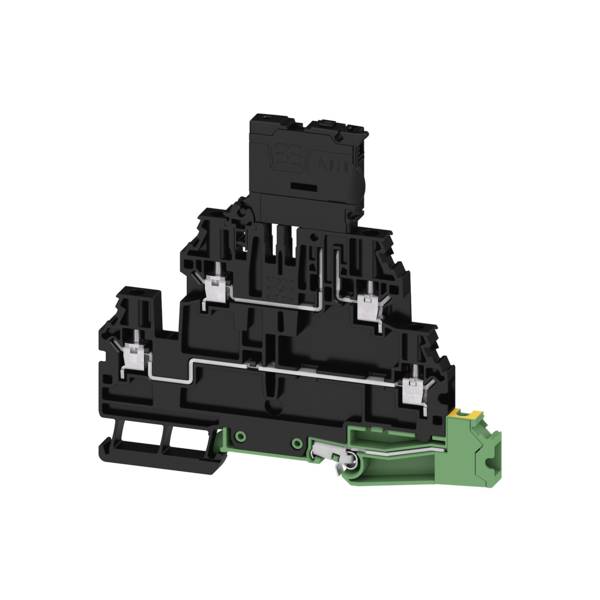

Weidmüller 2894130000 Fuse serial terminal Screws Black 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Highlights & Details
Fuse terminal block, screw connection, black, 4 mm², 6.3 A, 150 V, number of connections: 5, number of floors: 3, TS 35
- W2T 4 FS-FT-PE 60-150V BK STB
Technical specifications
- Product type
Fuse serial terminal
- Features
+ swivelling fuse holder
+ LED display
- Connection
Screws
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
3
- Factory colour
Black
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
150 V
- Manufacturer part #
2894130000
- Content
50 pc(s)
- Type
W2T 4 FS-FT-PE 60-150V BK STB
- Dim
(L x W) 99.5 mm x 6.1 mm
- Width
6.1 mm
- Length
99.5 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750736 Weidmüller 2894130000 Fuse serial terminal Screws Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3750736 Weidmüller 2894130000 Fuse serial terminal Screws Black 50 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. With removable carrier for fuse insert.
