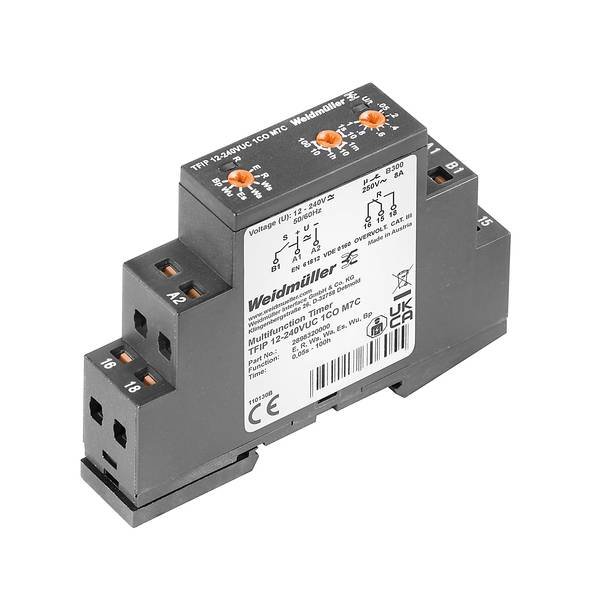

Weidmüller 2898320000 TFIP 12-240VUC 1CO M7C TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
On-delay
Off-delay
Single shot leading and trailing edge
Pulse shaper
Flasher, pulse OFF
Min. operating voltage
10.8 V AC
10.8 V DC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
TFIP 12-240VUC 1CO M7C
- Type
Multifunction
- Connection
Push-in spring-loaded terminal
- Functions
On-delay
Off-delay
Single shot leading and trailing edge
Pulse shaper
Flasher, pulse OFF
- Min. operating voltage
10.8 V AC
10.8 V DC
- Max. operating voltage
264 V AC
264 V DC
- Operating voltage
10.8, 10.8 - 264, 264 V AC, V DC
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
30 V DC
- Switching current (max.)
8 A
- Time range (min.)
0.5 s
- Time range (max.)
360000 s
IP20
- Width
17.5 mm
- Depth
60 mm
- Dim
(W x D) 17.5 mm x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748943 Weidmüller 2898320000 TFIP 12-240VUC 1CO M7C TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
User & Safety Instructions
User & Safety Instructions 3748943 Weidmüller 2898320000 TFIP 12-240VUC 1CO M7C TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
Description
Time relay for processing signals in the control system. Short pulses are extended in time and thus reliably detected by the downstream control modules.
