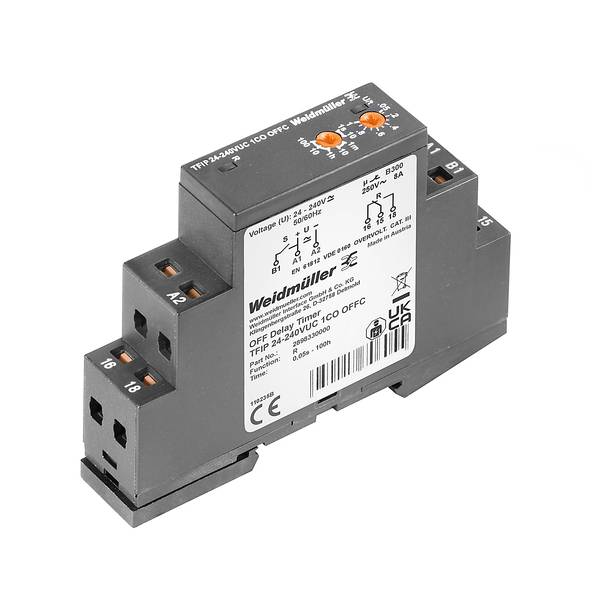

Weidmüller 2898330000 TFIP 24-240VUC 1CO OFFC TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
Off-delay
Min. operating voltage
20.4 V AC
20.4 V DC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
TFIP 24-240VUC 1CO OFFC
- Type
Multifunction
- Connection
Push-in spring-loaded terminal
- Functions
Off-delay
- Min. operating voltage
20.4 V AC
20.4 V DC
- Max. operating voltage
264 V AC
264 V DC
- Operating voltage
20.4, 20.4 - 264, 264 V AC, V DC
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
30 V DC
- Switching current (max.)
8 A
- Time range (min.)
0.5 s
- Time range (max.)
360000 s
IP20
- Width
17.5 mm
- Depth
60 mm
- Dim
(W x D) 17.5 mm x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748944 Weidmüller 2898330000 TFIP 24-240VUC 1CO OFFC TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
User & Safety Instructions
User & Safety Instructions 3748944 Weidmüller 2898330000 TFIP 24-240VUC 1CO OFFC TDR Multifunction 1 pc(s) Time range: 0.5 - 360000 s 1 change-over Piece
Description
Time relay for processing signals in the control system. Short pulses are extended in time and thus reliably detected by the downstream control modules.
This text is machine translated.
This text is machine translated.
