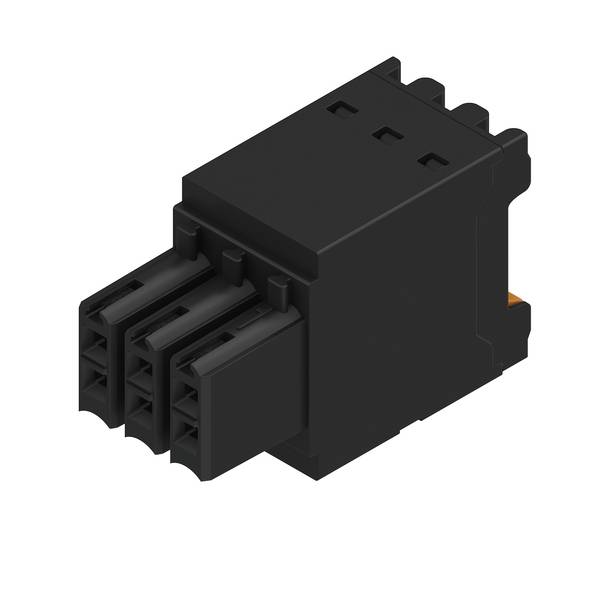

Weidmüller 2934070000 PCB connector Total number of pins 6 1 pc(s) Box
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
6
Connector type
Socket
CS
3.5 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
PCB connector (conductor connection), 160 V, 13.4 A, pitch in mm: 3.50, 1.5 mm², number of poles: 6, PUSH IN with button, box
- Content 1 pc(s)
Technical specifications
- Packaging type
Box
- Product type
PCB connector
- Total no. of pins
6
- Connector type
Socket
- Connector orientation
Perpendicular (to the PCB)
- CS
3.5 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Connection
Plug & Clip
- Factory colour
Black
- Case material
Plastic
- Manufacturer part #
2934070000
- Content
1 pc(s)
- Contact material
Copper silver plated
- Max. temperature
120 °C
- Min. temperature
-50 °C
- Type
B2CF 3.50/06/180 SN BK BX LRP
- Connector contact surface
Tin
- Nominal voltage
160 V
- Number of pins
6
- Cross section
1.5 mm²
Flexible PCB-connector
Black
160 V
6
Bus
Plastic
Uncoated
-50-120 °C
2.5 kV
9011
Push-in clamp connection
Tin
III
2
Tubular cable
3.5 mm
3.5 mm
0.14-1.5 mm²
0.14-1.5 mm²
0.14-1.5 mm²
IP20
FALSE
Polyamide (PA)
Copper
90° (upwards vertical)
12 A
V0
Documents & Downloads
Datasheet
Datasheet 3767858 Weidmüller 2934070000 PCB connector Total number of pins 6 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767858 Weidmüller 2934070000 PCB connector Total number of pins 6 1 pc(s) Box
Description
Pluggable PCB connection with innovative connection technology for safe and intuitive use.
