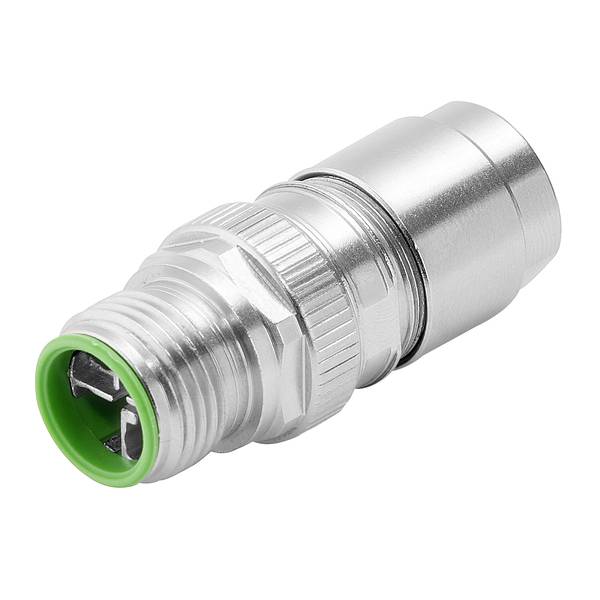

Weidmüller 3020530000 DIN connector Plug, straight Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Plug, straight
Total no. of pins
8
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
IE-PS-M12X-180-P-TH-CG-E
- Product type
DIN connector
- Connector type
Plug, straight
- Total no. of pins
8
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
0.5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
500 mA
- Nominal voltage
48 V
- Contact material
Gold on nickel
- Cable Ø (max.)
9 mm
- Cable Ø up to
4 mm
- Code
X
- Manufacturer part #
3020530000
- Cable Ø range
4 - 9 mm
- Number of pins
8
- (Ø)
15 mm
- max. cross section
0.34 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.34 mm²
- Feature
shielded
IP67 (when installed)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748275 Weidmüller 3020530000 DIN connector Plug, straight Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748275 Weidmüller 3020530000 DIN connector Plug, straight Total number of pins: 8 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
