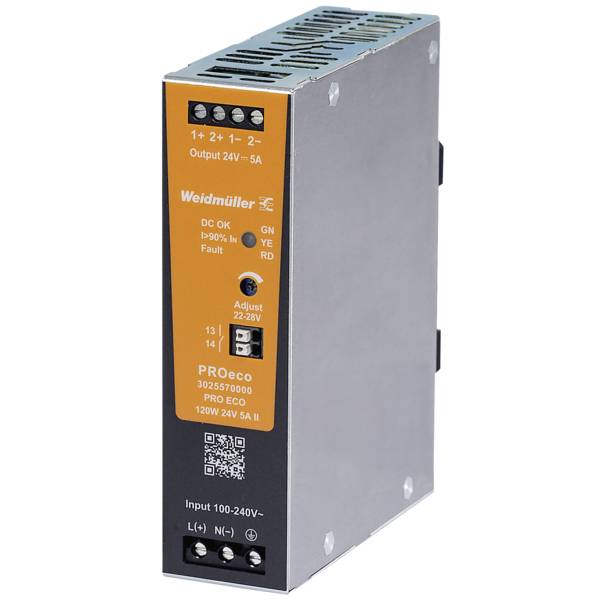

Weidmüller 3025570000 Power supply unit 24 V 5 A 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Mounting rail mounting, wall mounting
- Product type
Power supply unit
- Min. input voltage
100 V AC
120 V DC
- Input voltage (max.)
240 V AC
340 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output voltage (nominal)
24 V
- Connection
Screws
- Dim
(L x W) 100 mm x 35 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
22 V
- Manufacturer part #
3025570000
- Content
1 pc(s)
- PSU features
Adjustable voltage output
Regulated
- Width
35 mm
- Length
100 mm
IP20
- Type
PRO ECO 120W 24V 5A II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3745791 Weidmüller 3025570000 Power supply unit 24 V 5 A 120 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3745791 Weidmüller 3025570000 Power supply unit 24 V 5 A 120 W Content 1 pc(s)
Description
Power supply device for providing DC voltage.
