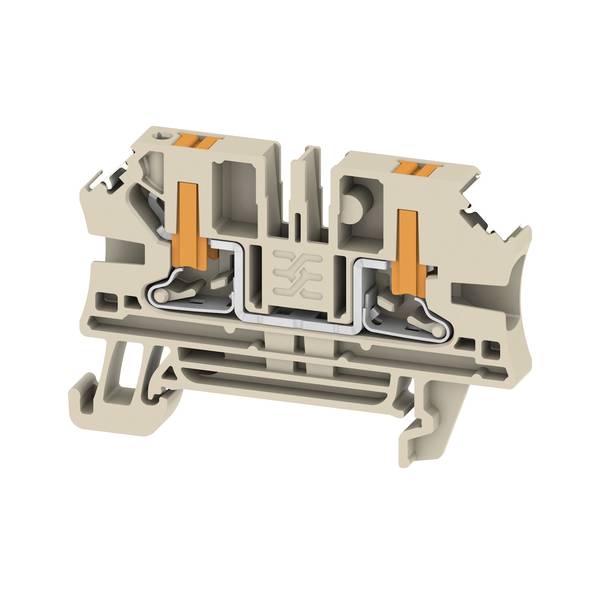

Weidmüller 3025870000 Serial continuity Plug & Clip Beige 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Highlights & Details
Continuity serial terminal, PUSH IN, beige, 4 mm², 32 A, 1000 V, number of connections 2
- AL2C 4 DL
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Beige
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
3025870000
- Content
50 pc(s)
- Type
AL2C 4 DL
- Dim
(L x W) 39.5 mm x 6.1 mm
- Width
6.1 mm
- Length
39.5 mm
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Beige
6.1 mm
60 mm
39.5 mm
1000 V
-60-130 °C
TRUE
Push-in clamp connection
1
2
0.14-6 mm²
0.14-4 mm²
0.14-6 mm²
0.14-4 mm²
Thermoplastic
32 A
FALSE
V0
Documents & Downloads
Datasheet
Datasheet 3749478 Weidmüller 3025870000 Serial continuity Plug & Clip Beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3749478 Weidmüller 3025870000 Serial continuity Plug & Clip Beige 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
