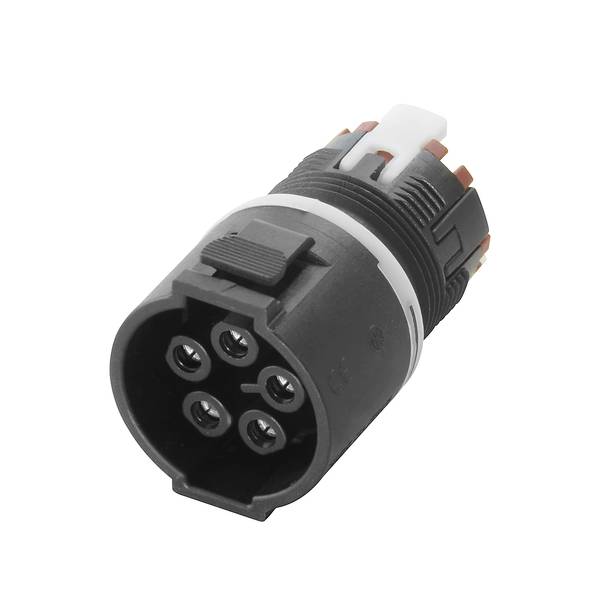

Weidmüller 3036850000 DIN connector Socket Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Socket
Total no. of pins
5
Connection
Plug & Clip
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
RC F P5 M20 C
- Product type
DIN connector
- Connector type
Socket
- Total no. of pins
5
- Connection
Plug & Clip
- Content
1 pc(s)
- Max. temperature
60 °C
- Nominal current
17.5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Contact material
Brass
- Cable Ø (max.)
13 mm
- Cable Ø up to
7 mm
- Case material
Plastic
- Manufacturer part #
3036850000
- Cable Ø range
7 - 13 mm
- Number of pins
5
- (Ø)
20 mm
- max. cross section
1.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 1.5 mm²
IP68 (mounted)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748202 Weidmüller 3036850000 DIN connector Socket Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748202 Weidmüller 3036850000 DIN connector Socket Total number of pins: 5 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
