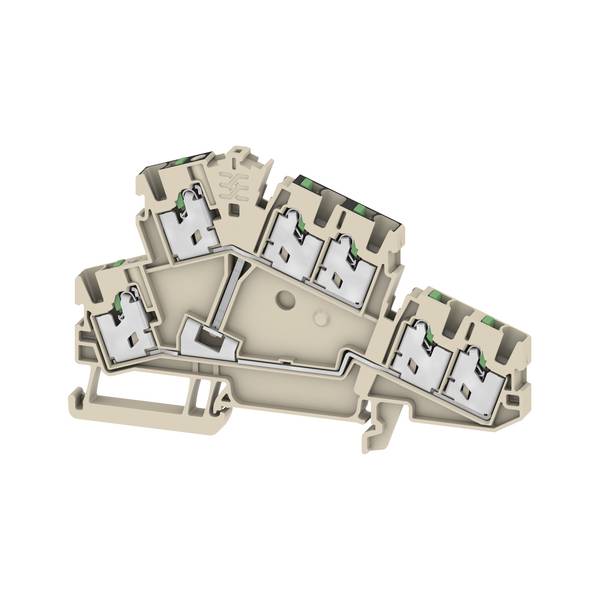

Weidmüller 3093210000 Multiport terminal Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Multiport terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Content
50 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Multiport terminal
- Features
built-in jumper
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.34 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
2
- Pins per row
3
- Factory colour
Beige
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3093210000
- Content
50 pc(s)
- Type
S2T 2.5 6C VL
- Dim
(L x W) 64.5 mm x 5.1 mm
- Width
5.1 mm
- Length
64.5 mm
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Beige
5.1 mm
102.5 mm
64.5 mm
800 V
-60-130 °C
TRUE
2
3
TRUE
0.34-2.5 mm²
0.34-2.5 mm²
0.34-4 mm²
0.34-2.5 mm²
Thermoplastic
24 A
FALSE
Copper
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3749628 Weidmüller 3093210000 Multiport terminal Beige 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3749628 Weidmüller 3093210000 Multiport terminal Beige 50 pc(s)
Description
Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.
