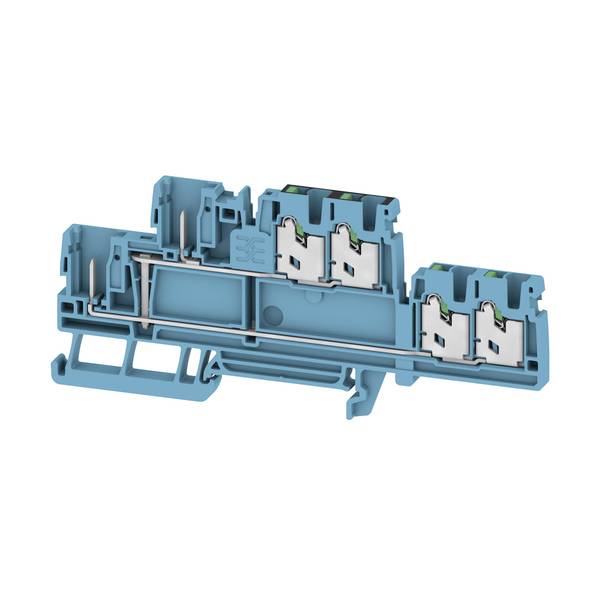

Weidmüller 3096170000 Terminal Spring-loaded terminal Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Highlights & Details
Plug-in terminal, snap-IN, blue, 2.5 mm², 24 A, 800 V, number of connections: 6, number of floors: 2, TS 35
- SPGTB 2.5 2T VL 6C/2 BL
Technical specifications
- Product type
Terminal
- Features
built-in jumper
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.34 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
2
- Pins per row
3
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3096170000
- Content
50 pc(s)
- Type
SPGTB 2.5 2T VL 6C/2 BL
- Dim
(L x W) 52 mm x 5.1 mm
- Width
5.1 mm
- Length
52 mm
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Blue
5.1 mm
115 mm
52 mm
800 V
-60-130 °C
TRUE
Clip connection
Clip connection
2
3
TRUE
0.34-2.5 mm²
0.34-2.5 mm²
0.34-4 mm²
0.34-2.5 mm²
Thermoplastic
24 A
FALSE
Copper
V0
Documents & Downloads
Datasheet
Datasheet 3749652 Weidmüller 3096170000 Terminal Spring-loaded terminal Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3749652 Weidmüller 3096170000 Terminal Spring-loaded terminal Blue 50 pc(s)
Description
Terminal block for plug connections.
