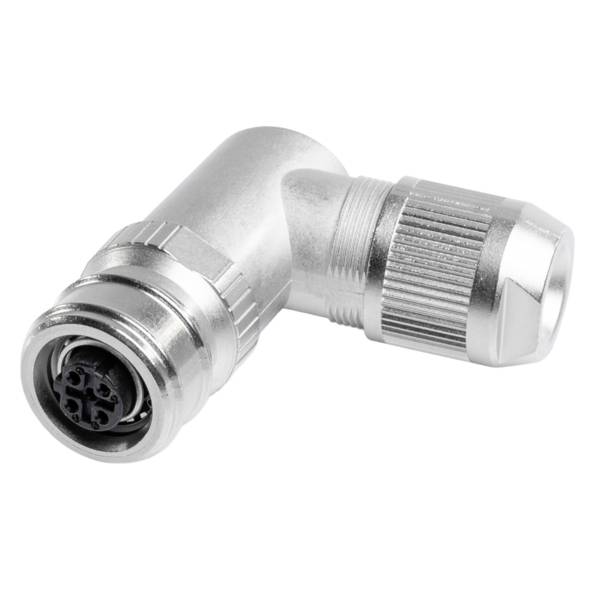

Weidmüller 3099430000 DIN connector Socket, right angle Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIN connector
Connector type
Socket, right angle
Total no. of pins
4
Connection
Plug & Clip
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Type
SAIBWP-M-4D-4/8-P12
- Product type
DIN connector
- Connector type
Socket, right angle
- Total no. of pins
4
- Connection
Plug & Clip
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Contact material
Gold on nickel
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Case material
Plastic
- Code
D
- Manufacturer part #
3099430000
- Cable Ø range
4 - 8 mm
- Number of pins
4
- (Ø)
18.6 mm
- max. cross section
0.75 mm²
- Min. cross section
0.08 mm²
- Cross-section range
0.08 - 0.75 mm²
- Feature
shielded
IP67 (when installed)
Other
TRUE
Bus
Plastic
None
-40-85 °C
V0
Push-in clamp connection
Nickel/gold
II
3
Angled
0.14-0.75 mm²
0.08-0.5 mm²
0.14-0.75 mm²
0.14-0.75 mm²
IP67
18.6 mm
4 A
4-8 mm
4
4
4
Zinc die-cast
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3748267 Weidmüller 3099430000 DIN connector Socket, right angle Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748267 Weidmüller 3099430000 DIN connector Socket, right angle Total number of pins: 4 1 pc(s)
Description
Round connector for individual wiring of conductors. Space-saving design.
