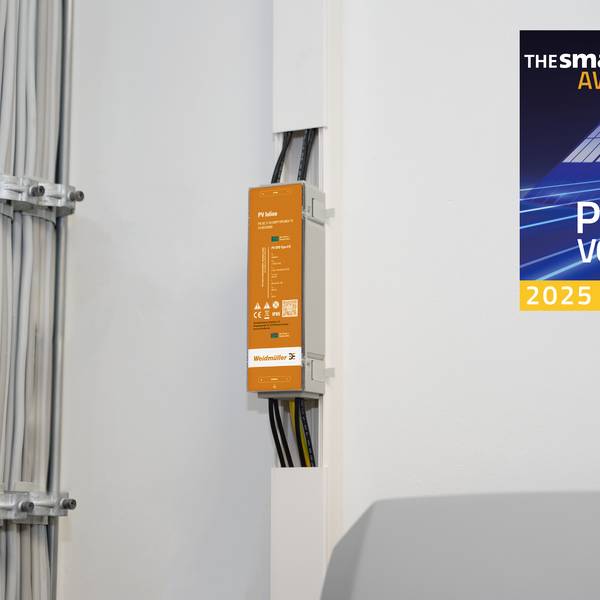

Weidmüller 3108230000 PVI DC 1I 1O 2MPP SPD1 MC4 10 Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Compatible with (details)
Photovoltaic
- Product type
Generator junction box
- Dim
(W x D) 60 mm x 52 mm
- Type
2 MPP
- Factory colour
Grey
- Content
1 pc(s)
- Width
60 mm
- Depth
52 mm
- System voltage
1100 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749495 Weidmüller 3108230000 PVI DC 1I 1O 2MPP SPD1 MC4 10 Generator junction box
User & Safety Instructions
User & Safety Instructions 3749495 Weidmüller 3108230000 PVI DC 1I 1O 2MPP SPD1 MC4 10 Generator junction box
Description
Generator connection box for inverters with 2 MPP trackers, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32. MPP1: 1 input, connection via MC4 connector, compatible with the cable design TÜV 2 Pfg1169/08.07 / EN 50618:2063 1 output, connection via MC4 connector, compatible with the cable version TÜV 2 Pfg1169/08.07 / EN 50618:2063 MPP2: Identical with MPP1 Max. String voltage Uoc: 1,100 VDC 1 class/type I + II combined conductor Connection of functional ground via pre-assembled cable, cable diameter: 16 mm² Protection class: IP65 All installed in a polyester housing. Dimensions HxWxT: 280x60x52 mm approval according to low-voltage switching devices IEC 61439-1 and EN 61439-2
