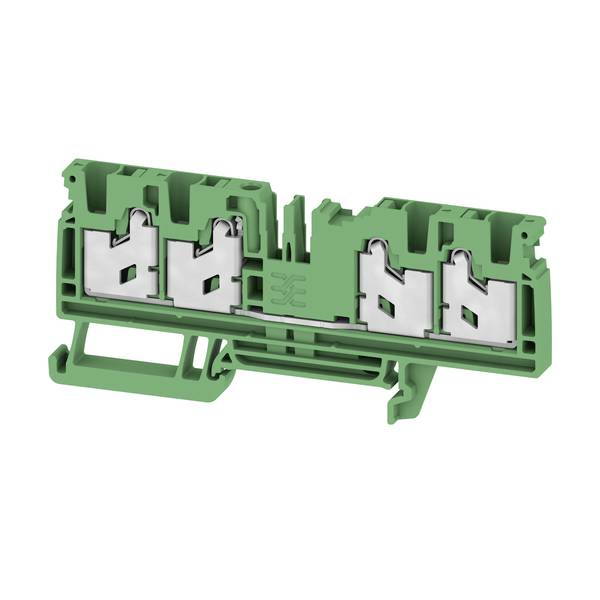

Weidmüller 3109580000 Serial continuity Clamp Green 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Clamp
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Clamp
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
4
- Factory colour
Green
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
3109580000
- Content
50 pc(s)
- Type
S4C 4 GN
- Dim
(L x W) 41.5 mm x 6.1 mm
- Width
6.1 mm
- Length
41.5 mm
- Flammability rating
V0
- Connector colour
Green
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Green
6.1 mm
94 mm
41.5 mm
1000 V
-60-130 °C
TRUE
Other
Other
1
4
FALSE
0.75-6 mm²
0.75-4 mm²
0.75-6 mm²
0.75-4 mm²
Thermoplastic
32 A
FALSE
Copper
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3751153 Weidmüller 3109580000 Serial continuity Clamp Green 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3751153 Weidmüller 3109580000 Serial continuity Clamp Green 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
