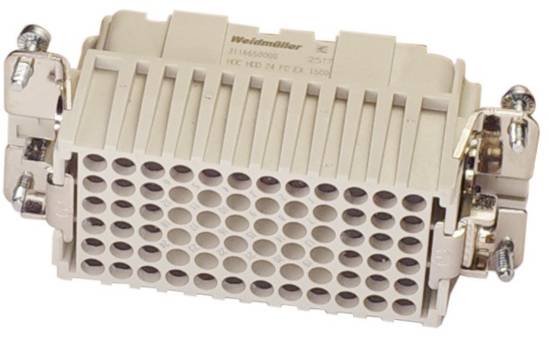

Rectangular industrial electrical connector with a grid of circular pin sockets and metal side latches<br>

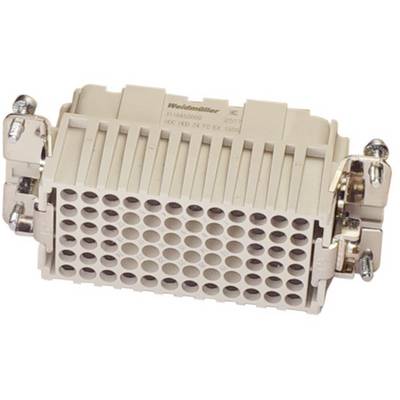

Rectangular industrial electrical connector with a grid of circular pin sockets and metal side latches<br>

Product type

Connector insert

Connection

Crimp

Series

RockStar® HDC HDD

Total no. of pins

24

Core cross section (max.)

2.5 mm²

Datasheet (PDF)

Deutsch (Deutschland)

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Connector insert

Series: RockStar® HDC HDD

Connection: Crimp

Total no. of pins: 24

Core cross section (max.): 2.5 mm²

Number of pins: 24

Core cross section (min.): 0.5 mm²

Content: 1 pc(s)

: 84 mm

: 36 mm

: 34 mm

: 1500 V

: FALSE

: 24

: Bus

: -20-40 °C

: V0

: Crimp connection

: Other

: 1.6 mm

: TRUE

: 0.5-2.5 mm²

: TRUE

: Other

: Thermoplastic

: Thermoplastic

: 24

: 0

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3748320 Weidmüller 3116650000 Connector insert RockStar® HDC HDD 24 Crimp 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3748320 Weidmüller 3116650000 Connector insert RockStar® HDC HDD 24 Crimp 1 pc(s)

Description

Insert for industrial connectors, comprising contact element and insulated body.

This text is machine translated.
