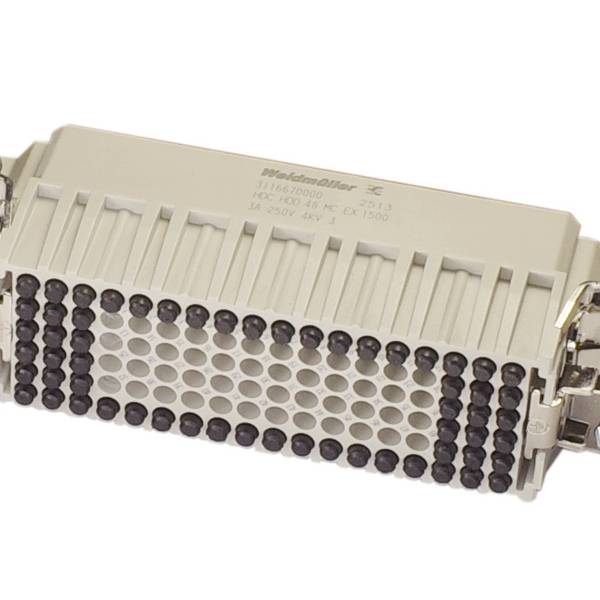

Weidmüller 3116670000 Connector insert RockStar® HDC HDD 48 Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector insert
Connection
Crimp
Series
RockStar® HDC HDD
Total no. of pins
48
Core cross section (max.)
2.5 mm²
Datasheet (PDF)
Technical specifications
- Product type
Connector insert
- Series
RockStar® HDC HDD
- Connection
Crimp
- Total no. of pins
48
- Core cross section (max.)
2.5 mm²
- Number of pins
48
- Core cross section (min.)
0.5 mm²
- Content
1 pc(s)
84 mm
36 mm
34 mm
1500 V
FALSE
48
Pin
-20-40 °C
V0
Crimp connection
Other
1.6 mm
TRUE
0.5-2.5 mm²
TRUE
Other
Thermoplastic
Thermoplastic
48
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3748326 Weidmüller 3116670000 Connector insert RockStar® HDC HDD 48 Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748326 Weidmüller 3116670000 Connector insert RockStar® HDC HDD 48 Crimp 1 pc(s)
Description
Insert for industrial connectors, comprising contact element and insulated body.
