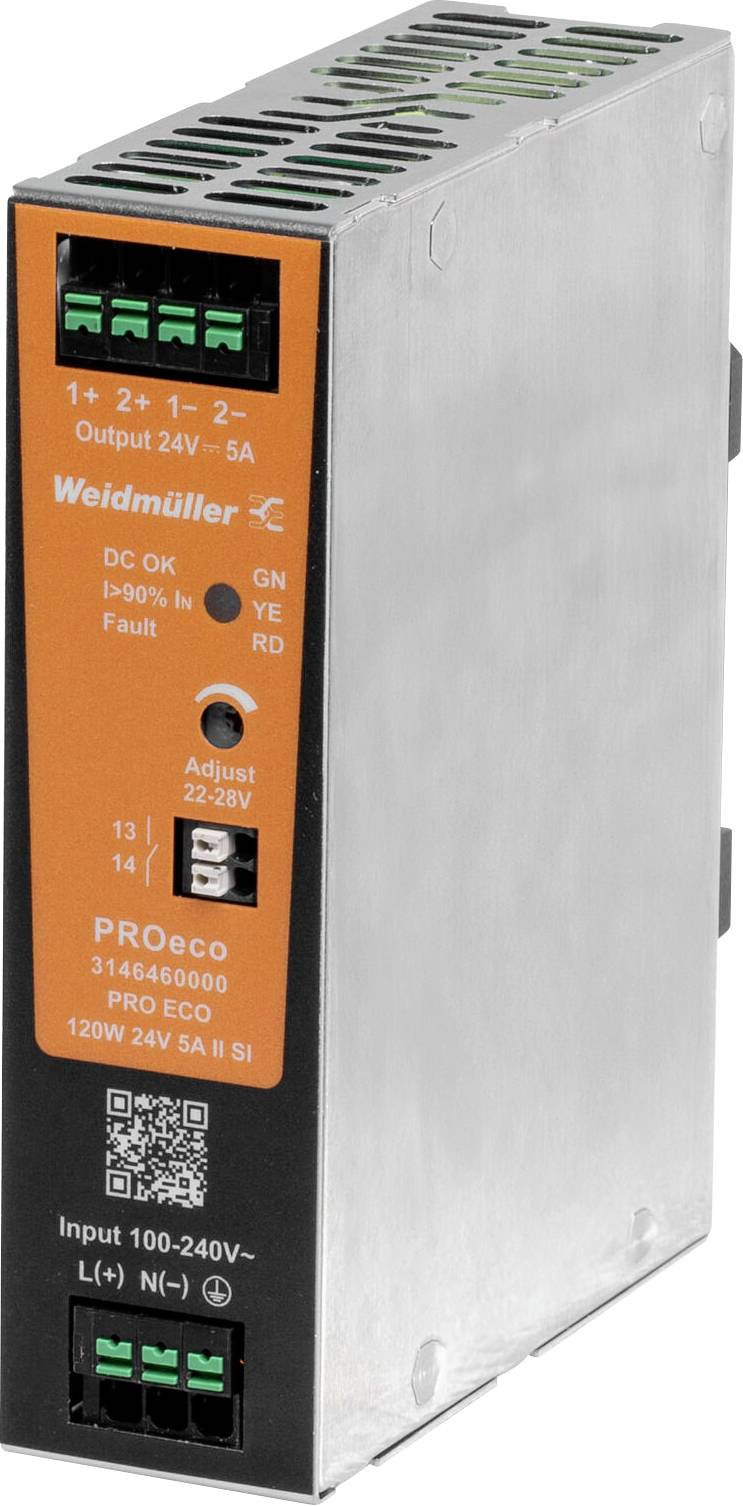

Weidmüller 3146460000 SMPSU 24 V 5 A 120 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Efficiency: Type.: 88.4% 120 V AC, type. 90.1% 230 V AC
- Product type
SMPSU
- Input voltage
85-264 V/AC;
110-370 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V
- Connection
Snap-in
- Dim
(L x W x H) 100 x 35 x 130 mm
- Weight
510 g
- Output voltage (max.)
28 V
- Output voltage (min.)
22 V
- Operating temperature (max.)
70 °C
- Manufacturer part #
3146460000
- Content
1 pc(s)
- PSU features
Surge protection
- Width
35 mm
- Height
130 mm
- Length
100 mm
IP20
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
PRO ECO 120W 24V 5A II SI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3642319 Weidmüller 3146460000 SMPSU 24 V 5 A 120 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3642319 Weidmüller 3146460000 SMPSU 24 V 5 A 120 W Content 1 pc(s)
Description
Power supply device for providing DC voltage.
This text is machine translated.
This text is machine translated.
